Nodes

The Nodes group is how you see Edgelet nodes and how they connect. Declare a node as kind: Agent. See Edgelet node management.

Page	Address	Use it to
Edgelet List	/#/nodes/list	Scan every Edgelet node and open its detail panel
Edgelet Map	/#/nodes/Map	See Edgelet nodes that reported a location
Mesh Graph	/#/nodes/mesh-graph	See router and NATS links

The detail panel is the same on the list, the map, and the mesh graph. It is documented once, after the three pages. The panel title is the Edgelet node name, or Agent Details.

Edgelet List

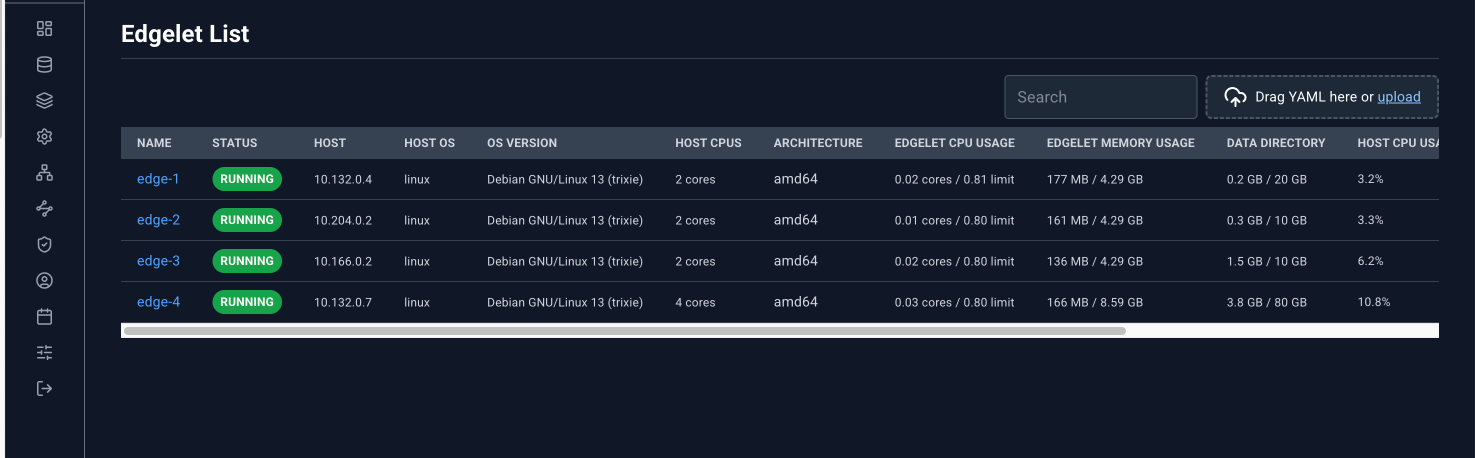

The page title is Edgelet List. The table lists every Edgelet node. System Edgelet nodes sort first, then names alphabetically. The list refreshes on the main polling interval.

Toolbar

Search, plus the YAML dropzone. An uploaded Agent document updates that Edgelet node, and the list picks it up on the next poll. There is no Create button on this page. New Edgelet nodes join by provisioning. Existing ones are edited from the detail panel or by YAML.

Table

Column	What it shows
Name	Edgelet node name. This is the link that opens the detail panel.
Status	Daemon status pill. An amber triangle means a CPU, memory, or disk limit violation. Hover the triangle for Limit violation: ….
Host	Host name, or the IP address when the host name is empty
Host OS	Operating system
OS Version	OS version
Host CPUs	Logical CPU count, as {n} core or {n} cores
Architecture	Architecture label (auto, amd64, arm64, riscv64, arm)
Edgelet CPU Usage	Edgelet CPU usage against its limit
Edgelet Memory Usage	Edgelet memory usage against its limit
Data Directory	Edgelet data-directory usage against its limit
Host CPU Usage	Host CPU bar
Host Memory	Host memory bar
Host Disk (FS)	Host filesystem disk bar
Version	Edgelet version string

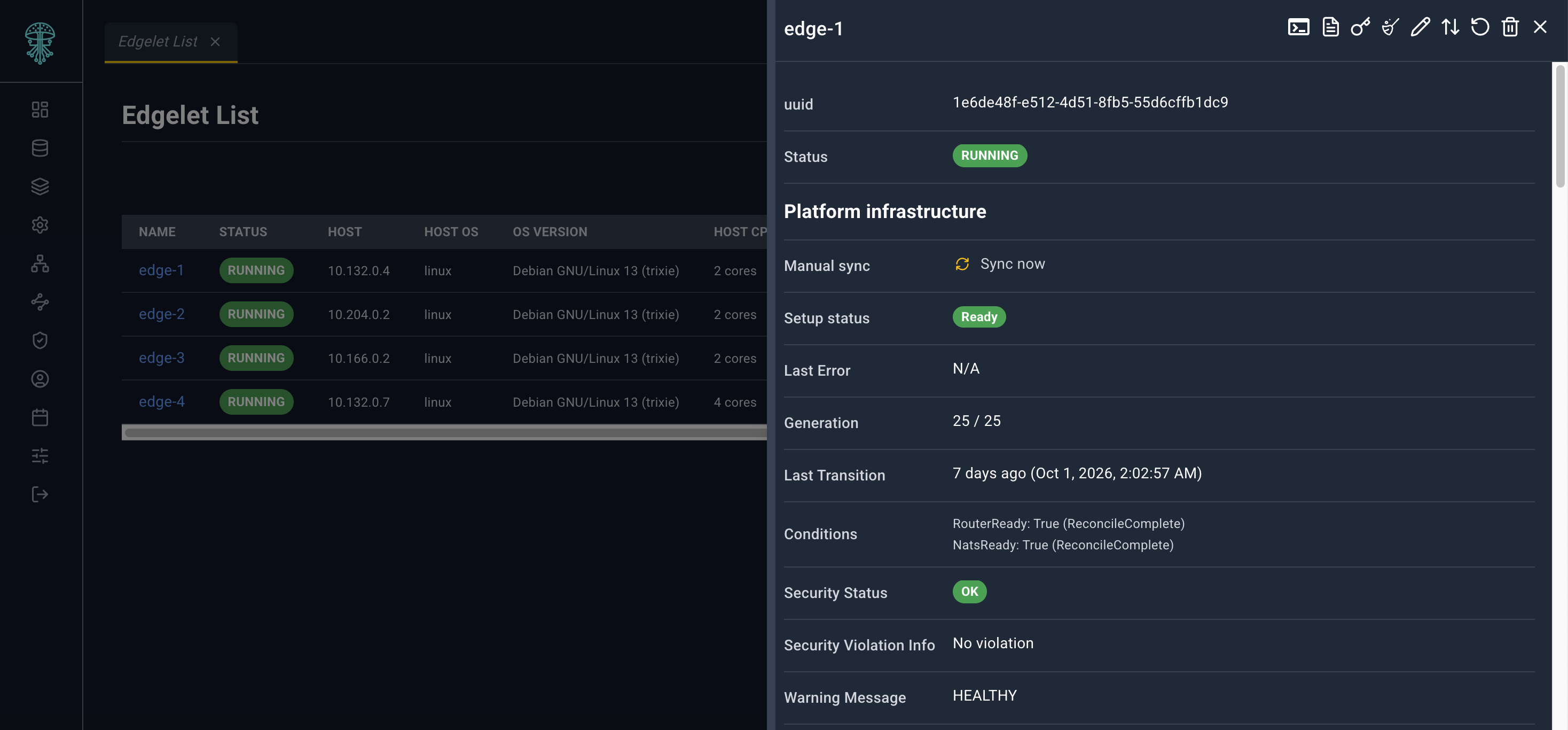

Click Name. A link from another page that uses ?agentId= opens the same panel when that Edgelet node is in the list.

Host metric bars are inventory. They are not an Edge Guard attestation. The detail panel says this in a footnote.

Edgelet Map

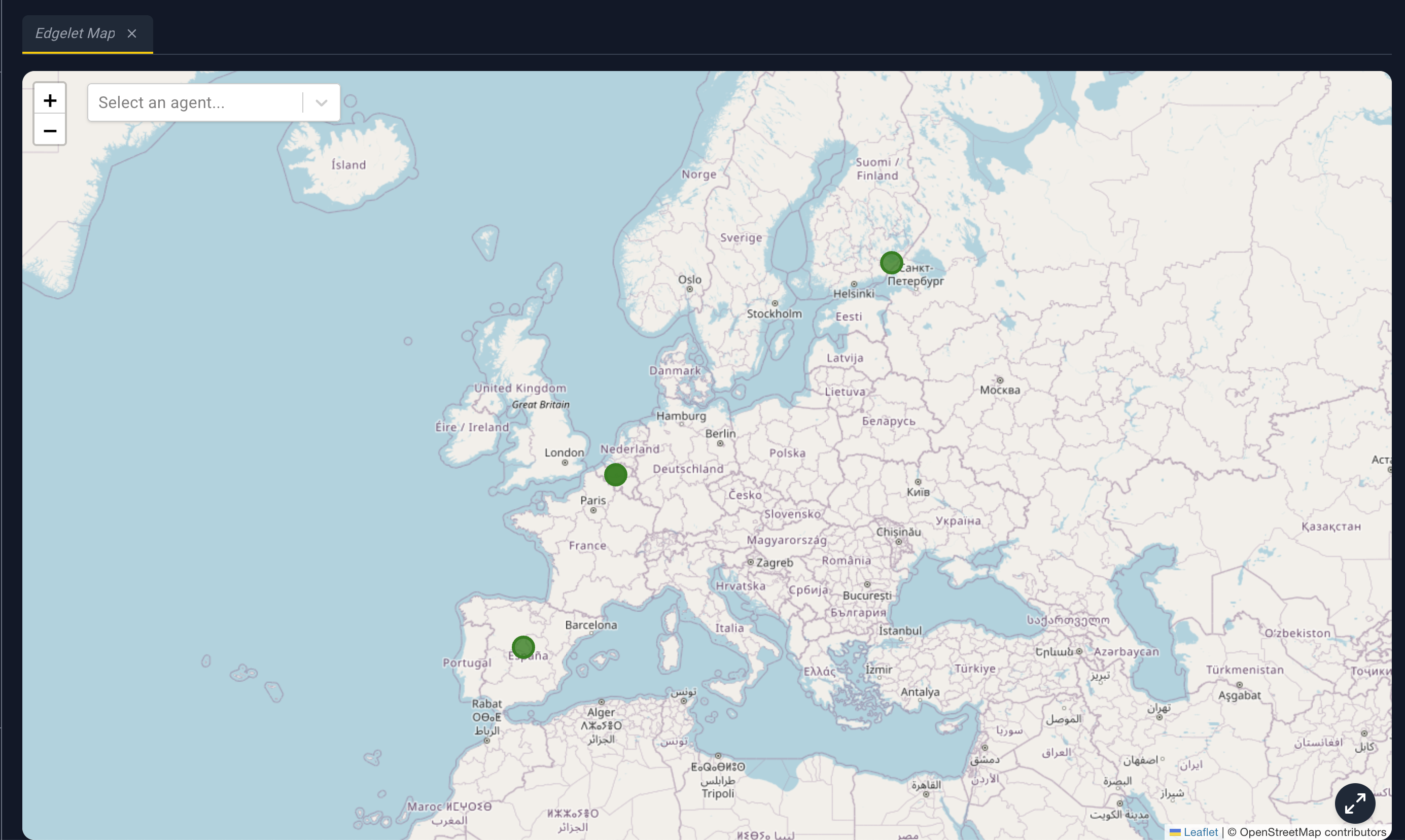

Edgelet Map plots Edgelet nodes that have latitude and longitude. Edgelet nodes without coordinates are absent from the map and from the selector.

What you can do

• Select an agent... chooses an Edgelet node, flies the map to it, and opens the detail panel. Clear the selector to dismiss that choice.
• Scroll to zoom. Drag to pan. The map opens framed on all markers, or on the Controller location when no markers have coordinates.

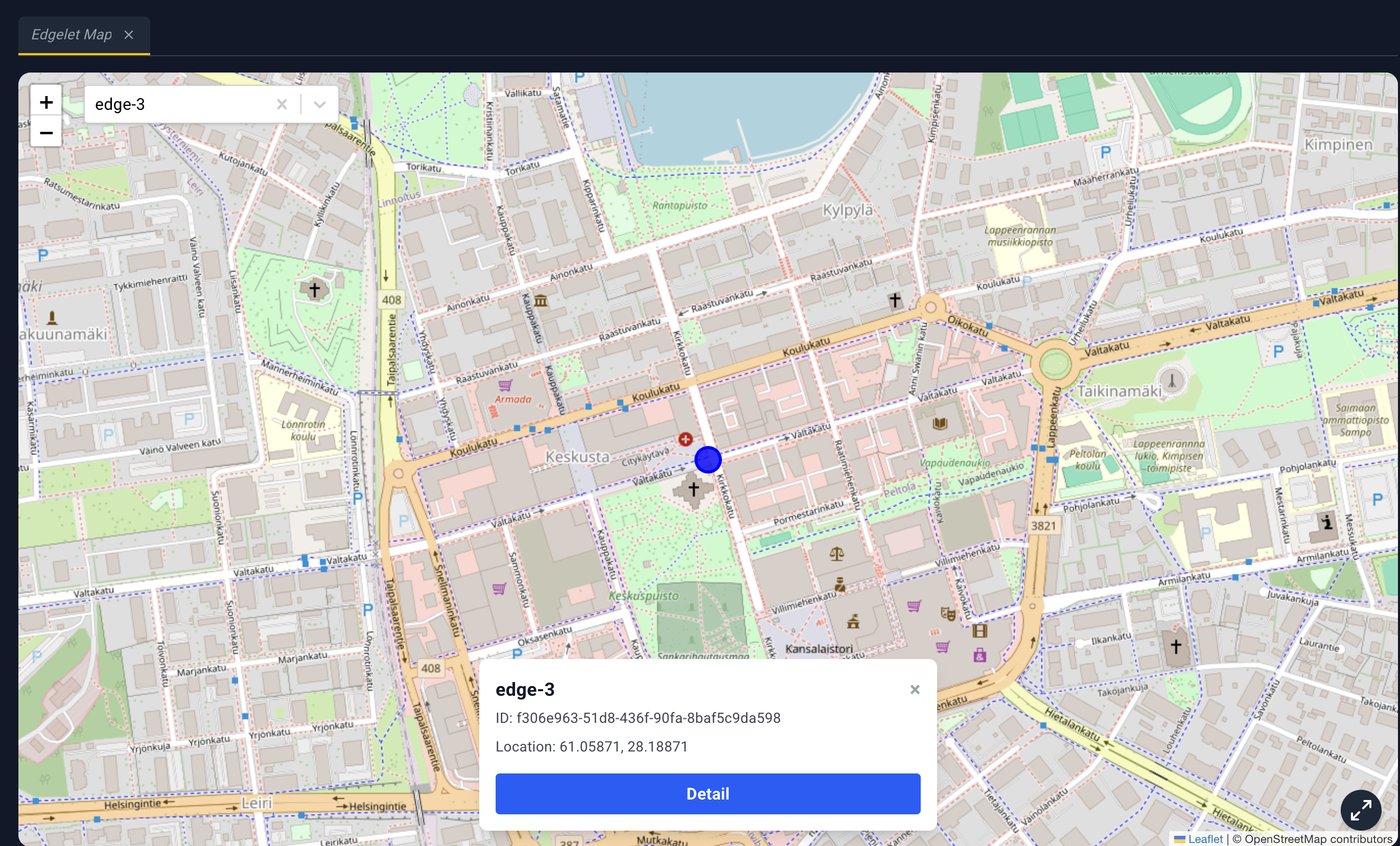

• Click a marker to select it and zoom in. A card at the bottom shows the name, ID, and location.
• Detail on that card opens the detail panel. Clicking the marker alone does not.
• Reset map view (bottom-right) frames the markers again.

Marker color:

Color	Meaning
Orange	Platform reconcile warning
Green	Daemon is Running and healthy
Amber	Running, with a warning that is not a healthy state
Red	Not running

There is no YAML dropzone on the map.

Mesh Graph

Mesh Graph draws how nodes connect. It has two layers:

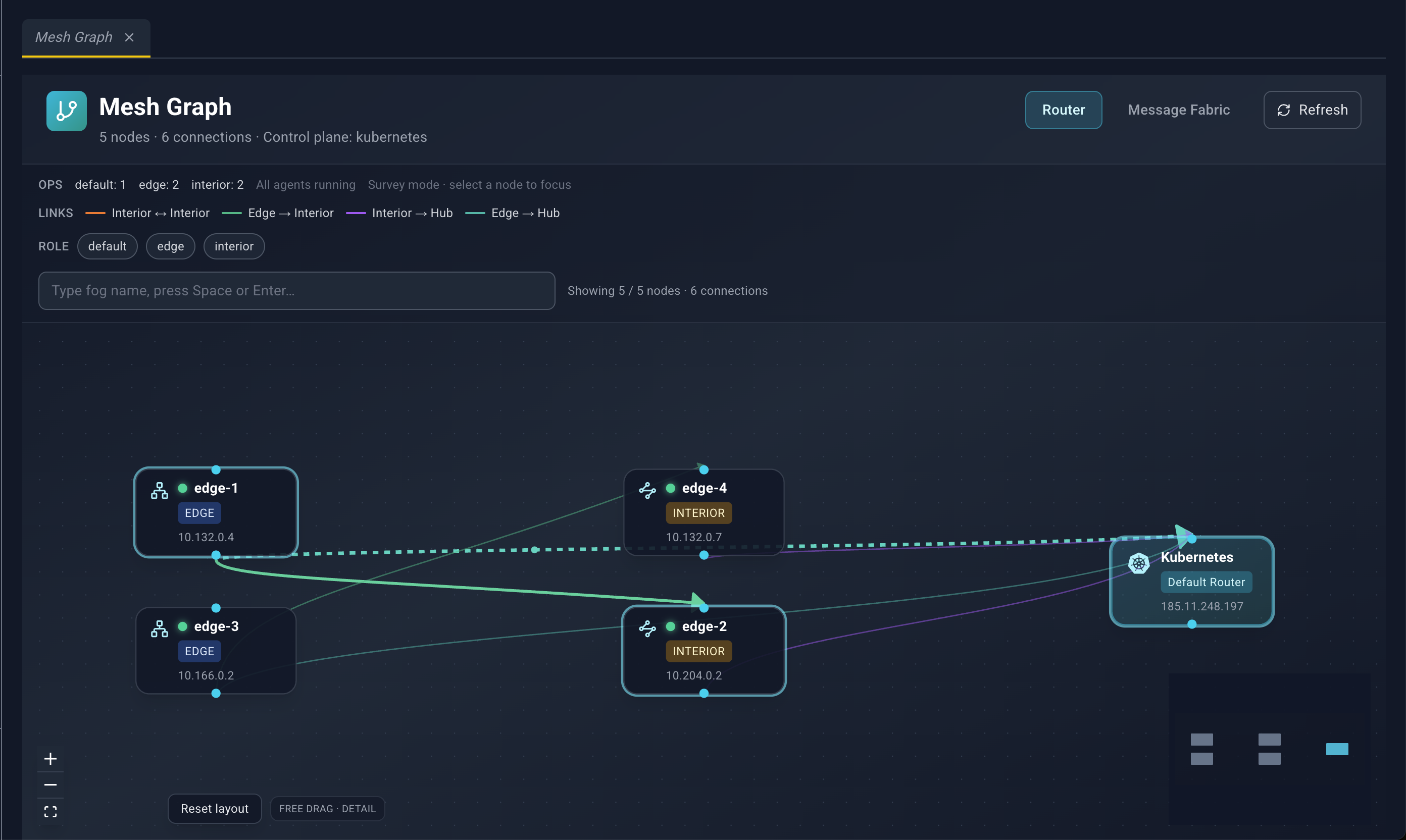

• Router. Interior routers, edge routers, and hubs.

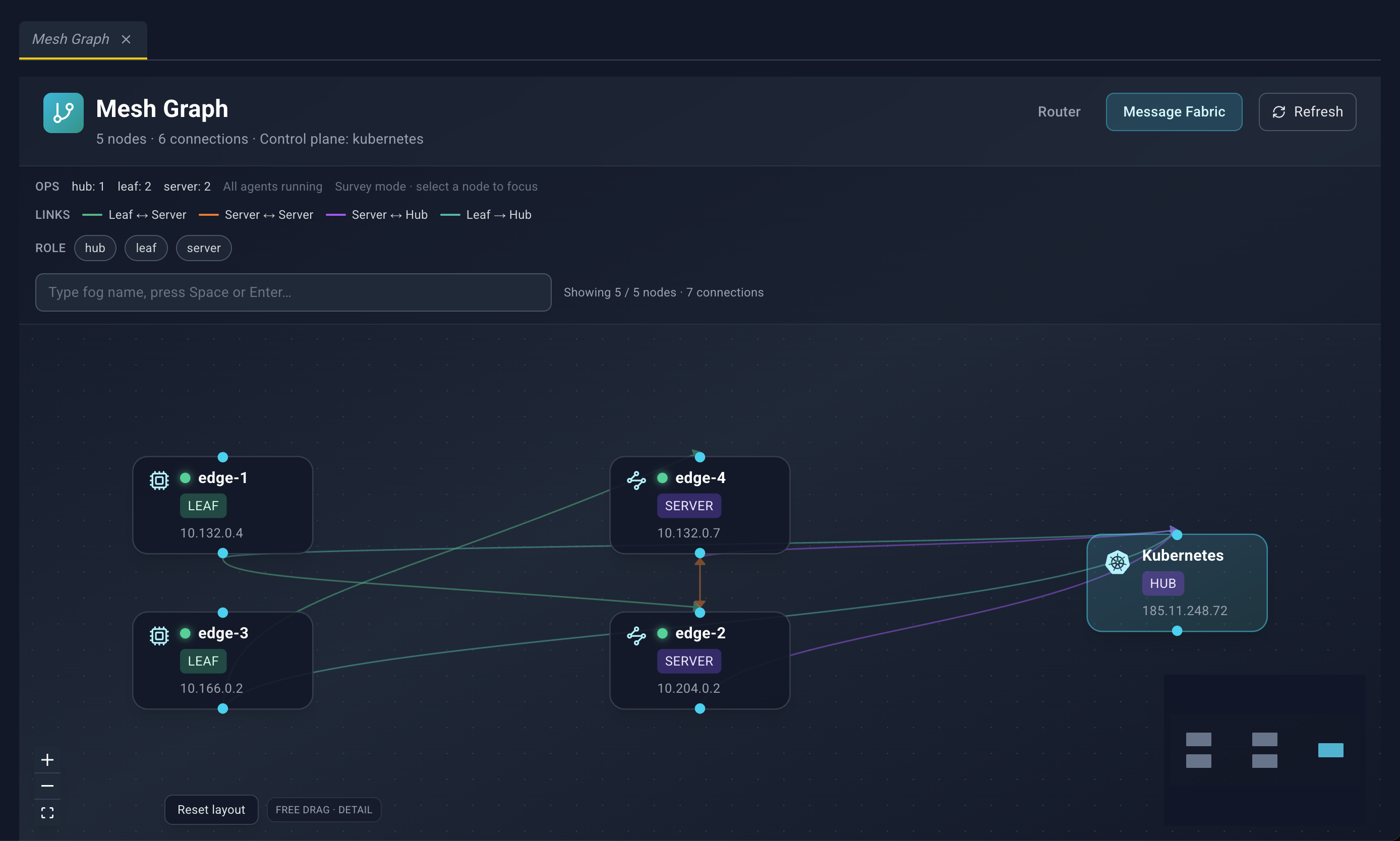

• Message Fabric. NATS servers, leaves, and hubs.

The subtitle shows {n} nodes · {n} connections, and the control-plane name when the summary includes one. Refresh reloads the summary and the active layer. A layer that is reloading shows Refreshing….

The graph does not use the main list poll. Use Refresh, or leave and come back, to pick up topology changes.

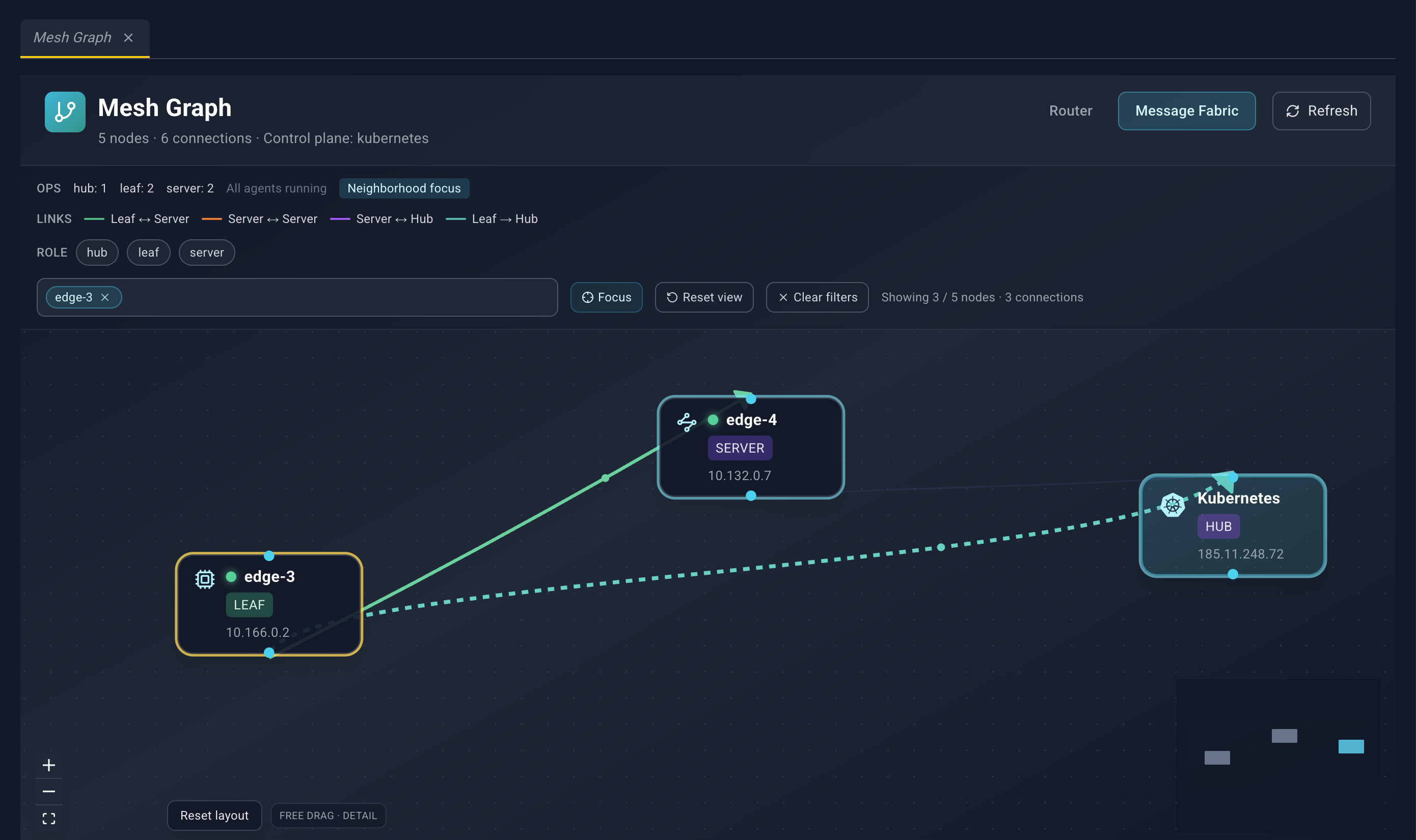

Filters

Each layer keeps its own filters.

• Role counts, from the full layer, sit on the first row.
• {n} degraded counts topology nodes tied to an Edgelet node whose daemon is not Running. Otherwise the line says All agents running.

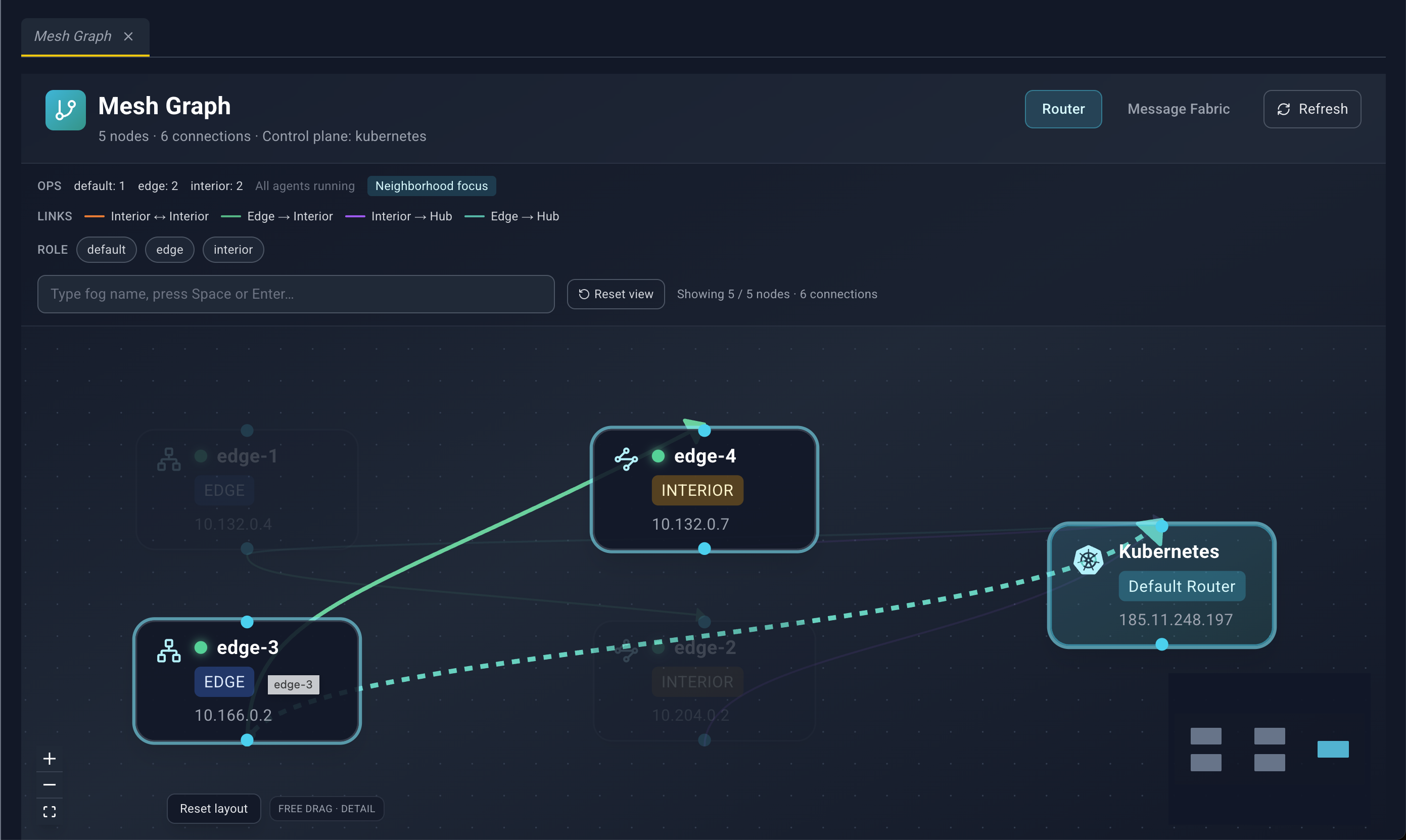

• Neighborhood focus means a node is selected and the graph highlights its neighborhood. Survey mode · select a node to focus means nothing is selected.
• The legend names link colors:
  • Router: Interior ↔ Interior, Edge → Interior, Interior → Hub, Edge → Hub
  • Message Fabric: Leaf ↔ Server, Server ↔ Server, Server ↔ Hub, Leaf → Hub
• Role chips toggle which roles stay visible. Router roles are default, edge, and interior. Message Fabric roles are hub, leaf, and server.
• Type fog name, press Space or Enter… adds a fog-name badge. Matching is a case-insensitive prefix of the fog name or the display name.
• Focus (crosshair) centers the graph on the fog-name matches.
• Reset view clears the selection and the filters.
• Clear filters clears filters and leaves the selection behavior to reset separately when you use that control.
• The count line reads Showing {visible} / {total} nodes · {connections} connections.

If nothing matches, the canvas says No nodes match the current filters. A failed load shows the error and Retry.

The canvas

Nodes show an icon, a title, and a role badge. A node tied to an Edgelet node also has a health dot: green when Running, amber for any other daemon status, gray when status is unknown. Zoomed in far enough, the host line appears under the title. The zoom label in the corner reads Free drag · overview, standard, or detail.

Spoke nodes can collapse into a group (a users icon, Click to expand, and the upstream name). Click the group to expand it and focus that upstream node.

Edges are bundled and colored by the legend. When you select or hover a node, the path toward the hub animates.

You can:

• Pan and zoom, including the minimap and the zoom controls.
• Drag nodes. Positions stay until you click Reset layout.
• Click a node to highlight its neighborhood and trace the path to the hub. That click also opens a detail panel (below).
• Hover a node to preview the neighborhood when nothing is selected.
• Click empty canvas to clear the selection and close both detail panels.

Which panel opens

The node has an Edgelet node id	Panel
Yes	The full Edgelet node detail panel
No	The topology node panel

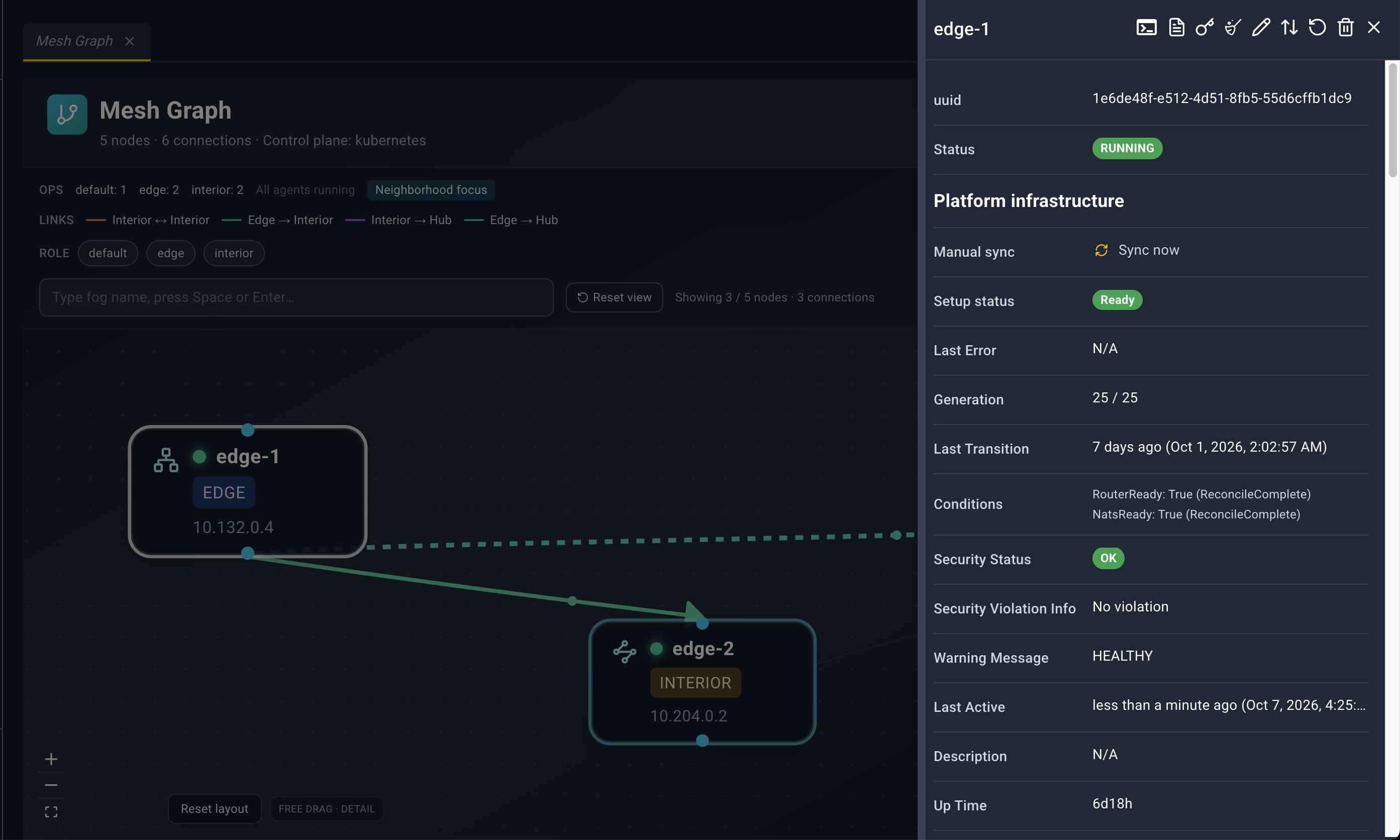

Topology node panel

Title is the display name, or Topology Node. While the detail is loading, the title is Loading…. The header has and no other actions.

Field	Meaning
Display Name	Name drawn on the node
Role	Router or NATS role
Mode	Node mode
Deployment	Where this node is deployed
Host	Host, or N/A
Connections	{n} upstream · {n} downstream
Agent	When the node is tied to an Edgelet node: a link to Edgelet List that opens that node. The label is the fog name, or the id.

Router nodes can also show Messaging port, Edge router port, and Inter-router port.

Message Fabric nodes can also show Server port, Leaf port, Cluster port, MQTT port, HTTP port, JS storage, and JS memory store.

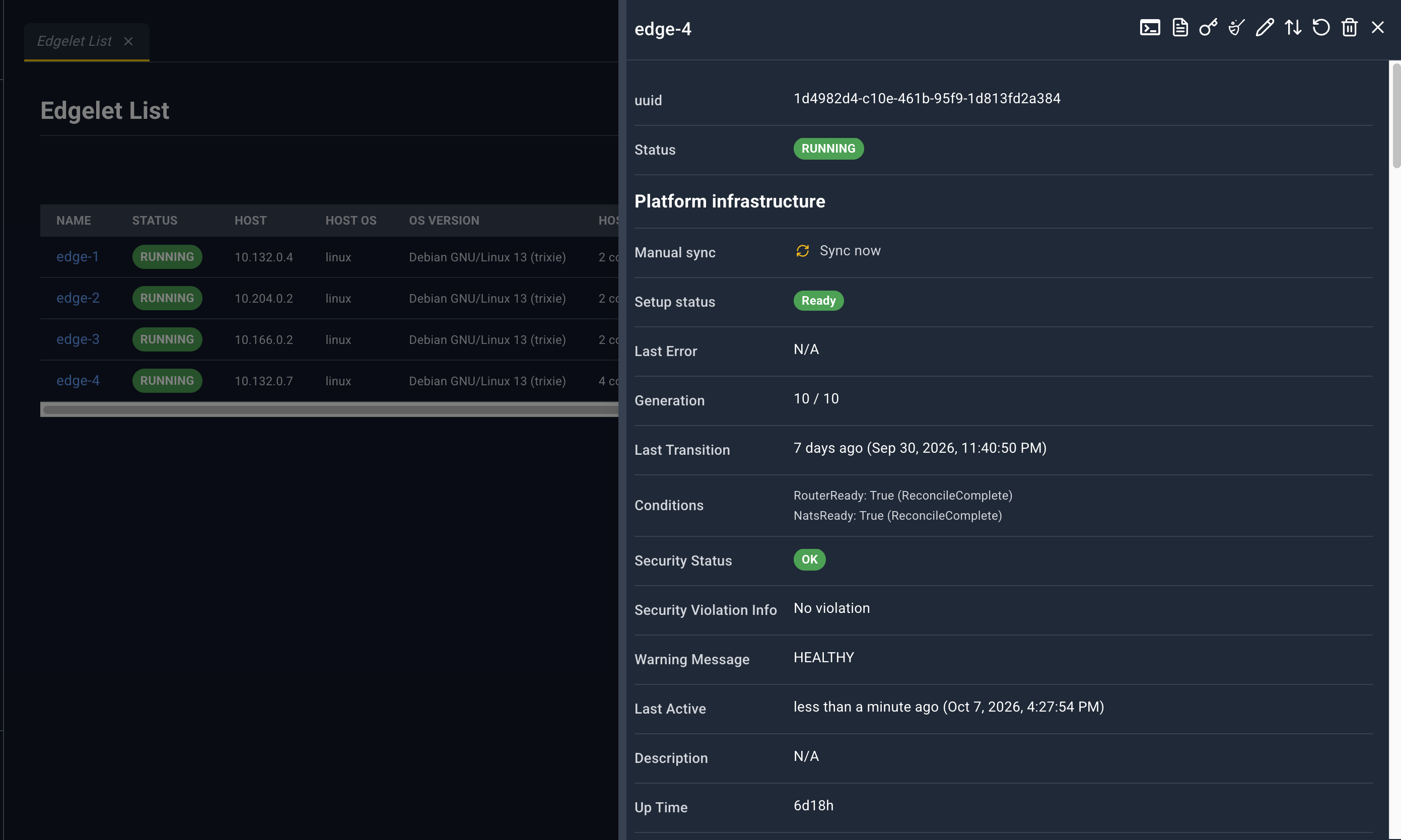

Edgelet node detail panel

Opened from Edgelet List, Edgelet Map (Detail or the selector), and Mesh Graph (a node that has an Edgelet node). The panel loads the full record when it opens, then keeps refreshing.

Title is the Edgelet node name, or Agent Details.

Header icons

Icon	Name	What happens
	Terminal	If the daemon is not running, an error toast appears and nothing opens. If it is running, Configure Exec Session opens.
	Logs	Configure Log Viewing, then a log stream for this Edgelet node.
	Provision Key	Provision Key for this Edgelet node.
	Clean	Confirm prune.
	Edit	YAML tab titled AgentConfig YAML: plus the node name. Save updates the Edgelet node.
	Version change	Version Change.
	Restart	Confirm, then reboot the Edgelet node.
	Delete	Confirm, then delete the Edgelet node.
	Close	Closes the panel.

These icons stay available on system and controller Edgelet nodes. Delete and version change add a stronger warning for those nodes. Attach, Detach, Publish, Start, and Stop are not on this panel.

Fields

Sections, in order:

1. Identity and health: uuid, Status, Manual sync, Setup status, Last Error, Generation, Last Transition, Conditions, Security Status, Security Violation Info, Warning Message, Last Active, Description, Up Time
2. Platform infrastructure continues those platform fields where the layout groups them
3. Agent Details: Host, Version, Mode (System or Node), Deployment Type, Container Engine, Architecture, IP Address, IP Address External, Tags, Created
4. Host: Logical CPUs, Host OS, OS version, Kernel (Linux only; otherwise N/A), Host CPU usage, Host memory, Host disk (FS). Footnote: Host fields are informational inventory, not Edge Guard attestation.
5. Edgelet stack: Edgelet CPU usage, CPU violation, Edgelet memory usage, Memory violation, Data directory, Data directory path, Disk violation. Footnote: Data directory usage is Edgelet policy storage, not the host filesystem totals above.
6. Volume Mounts
7. Applied Runtime Classes
8. AI model status
9. AI Knowledge status
10. Status (runtime): Available Runtimes, Available CDI devices, Runtime Agent Phase, Control Plane Quiesced, GPS Status, Is Ready To Rollback, Is Ready To Upgrade, Last Status Time
11. Applications
12. Microservices
13. System Applications
14. System Microservices

Manual sync is the button Sync now. Its tooltip is Re-applies router and NATS platform configuration for this node. Generation shows observed generation over desired generation, and (in progress) while they differ. Conditions lists type: status (reason). Violations are Yes or No.

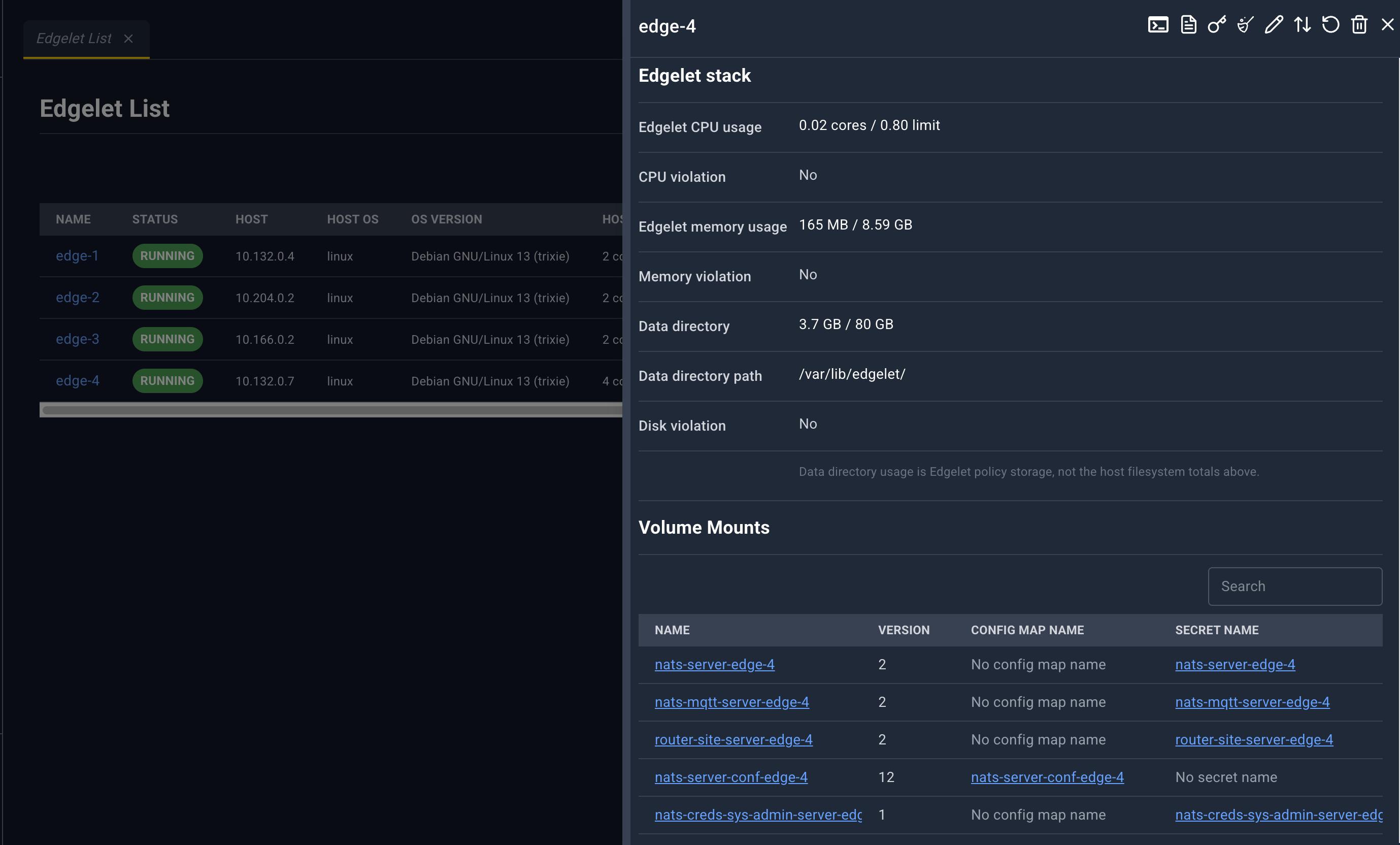

Linked tables

Empty sections say No volume mounts…, No microservices available., or No resource found for this Edgelet node.

Section	Columns	Blue links open
Volume Mounts	Name, Version, Config Map Name, Secret Name	Volume Mounts, Config Maps, Secrets
Applied Runtime Classes	Name, Handler, Source	Runtime Classes
AI model status	Name, Source, State, Digest, Resolved Revision, Revision Floating, Total Bytes, Last Error	AI Model Catalog, when source is managed
AI Knowledge status	Same shape as models	AI Knowledge Catalog, when source is managed
Applications	Application Name, Status (ACTIVE / INACTIVE)	Application list, that application
Microservices	Name, Status, Agent, Ports	Microservices list, that microservice
System Applications	Application Name, Status	System Application list
System Microservices	Name, Status, Agent, Ports	System Microservices list

Ports in the microservice tables render as internal:external/protocol.

Models and knowledge are declared in Models and knowledge. Volume mounts, config maps, and secrets are declared in Config, secrets, and volumes. Runtime classes are declared in Runtime classes.

Dialogs

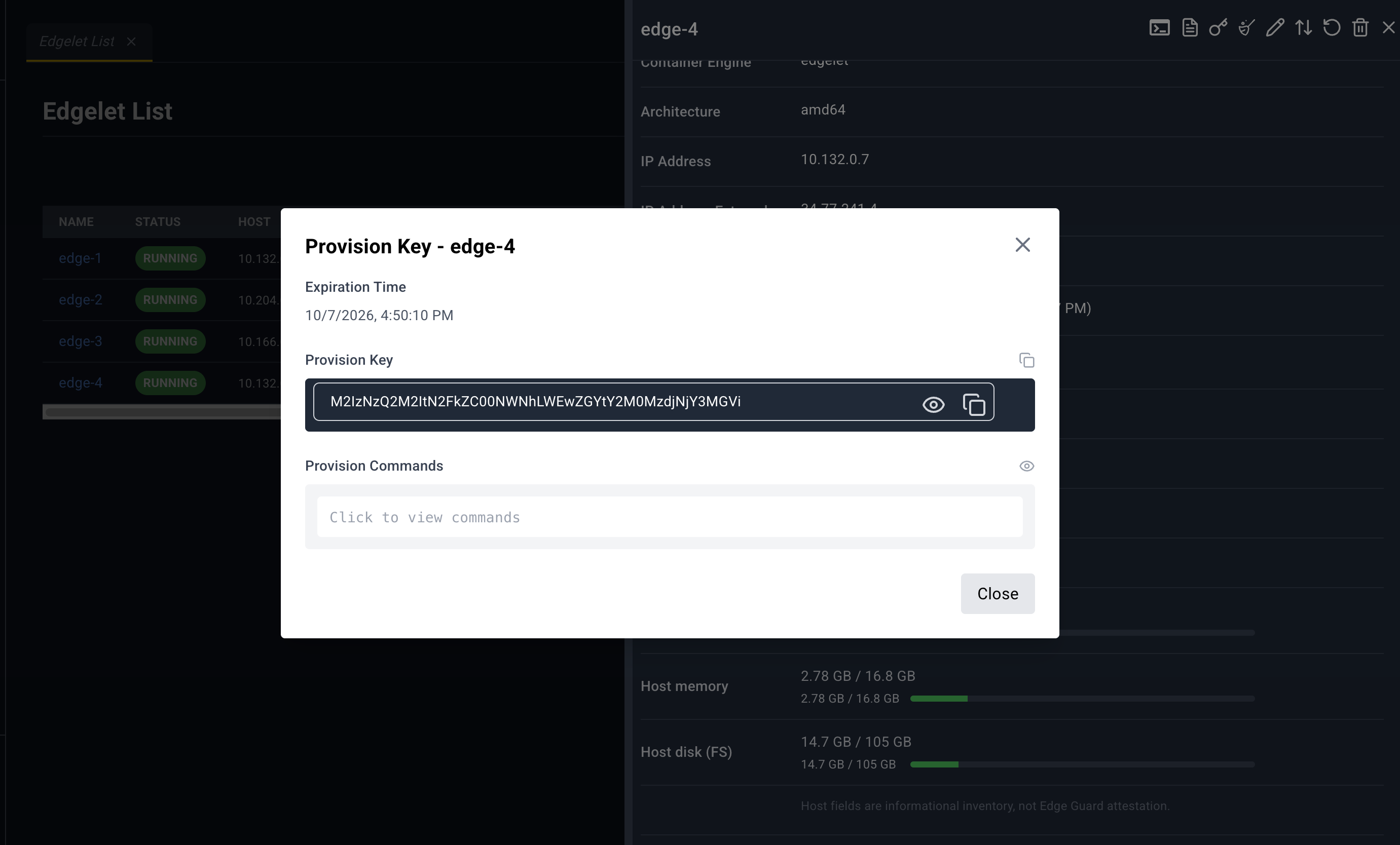

Provision Key for the Edgelet node loads the key, then shows:

• Expiration Time
• Provision Key with copy
• CA Certificate (Base64) with copy, masked until revealed
• Provision Commands, hidden until you reveal them. The commands configure the Edgelet node and run provision.

Close dismisses the dialog.

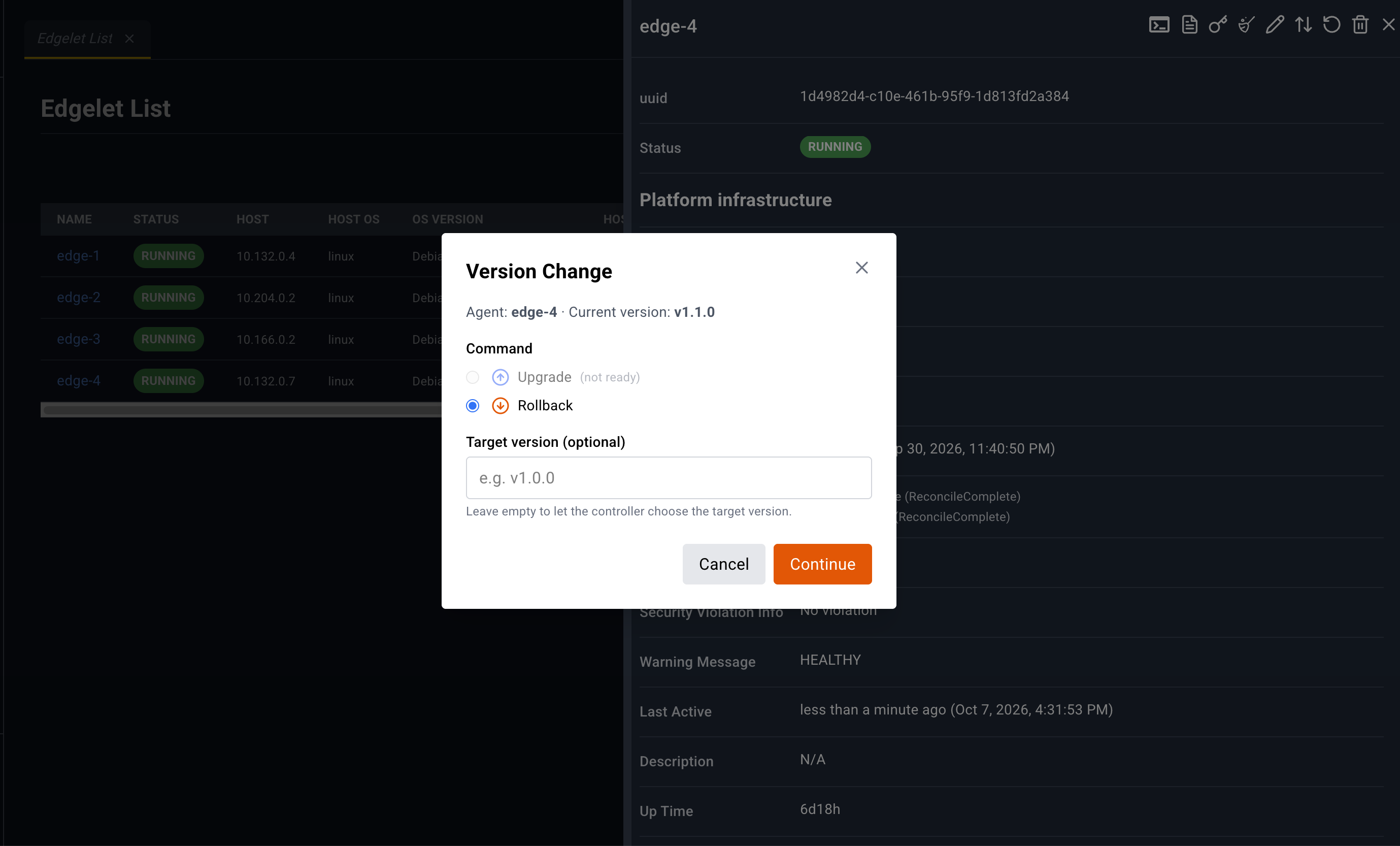

Version Change shows the current version. A critical Edgelet node (system, or one hosting the controller microservice) shows an extra warning. If neither upgrade nor rollback is ready, the dialog says so and both choices stay disabled with (not ready).

• Command: Upgrade or Rollback
• Target version (optional), placeholder e.g. v1.0.0
• Continue opens a second confirm titled Confirm version change, with Upgrade or Rollback

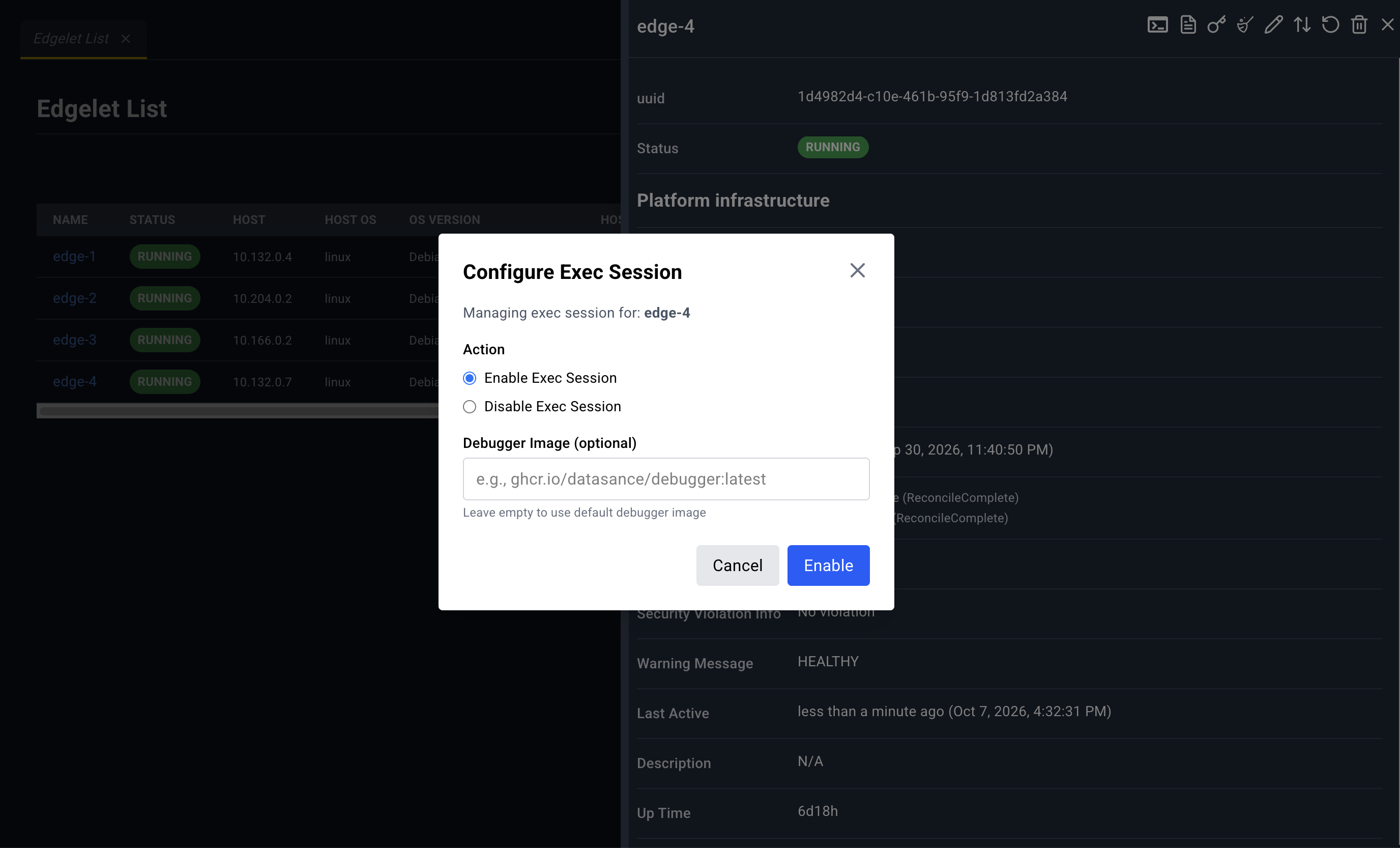

Configure Exec Session

• Action: Enable Exec Session or Disable Exec Session
• Debugger Image (optional) when enabling, placeholder e.g., ghcr.io/datasance/debugger:latest

Enable starts a bottom-drawer tab Agent Shell: plus the node name. Disable ends the exec session. The drawer is described in Console shell.

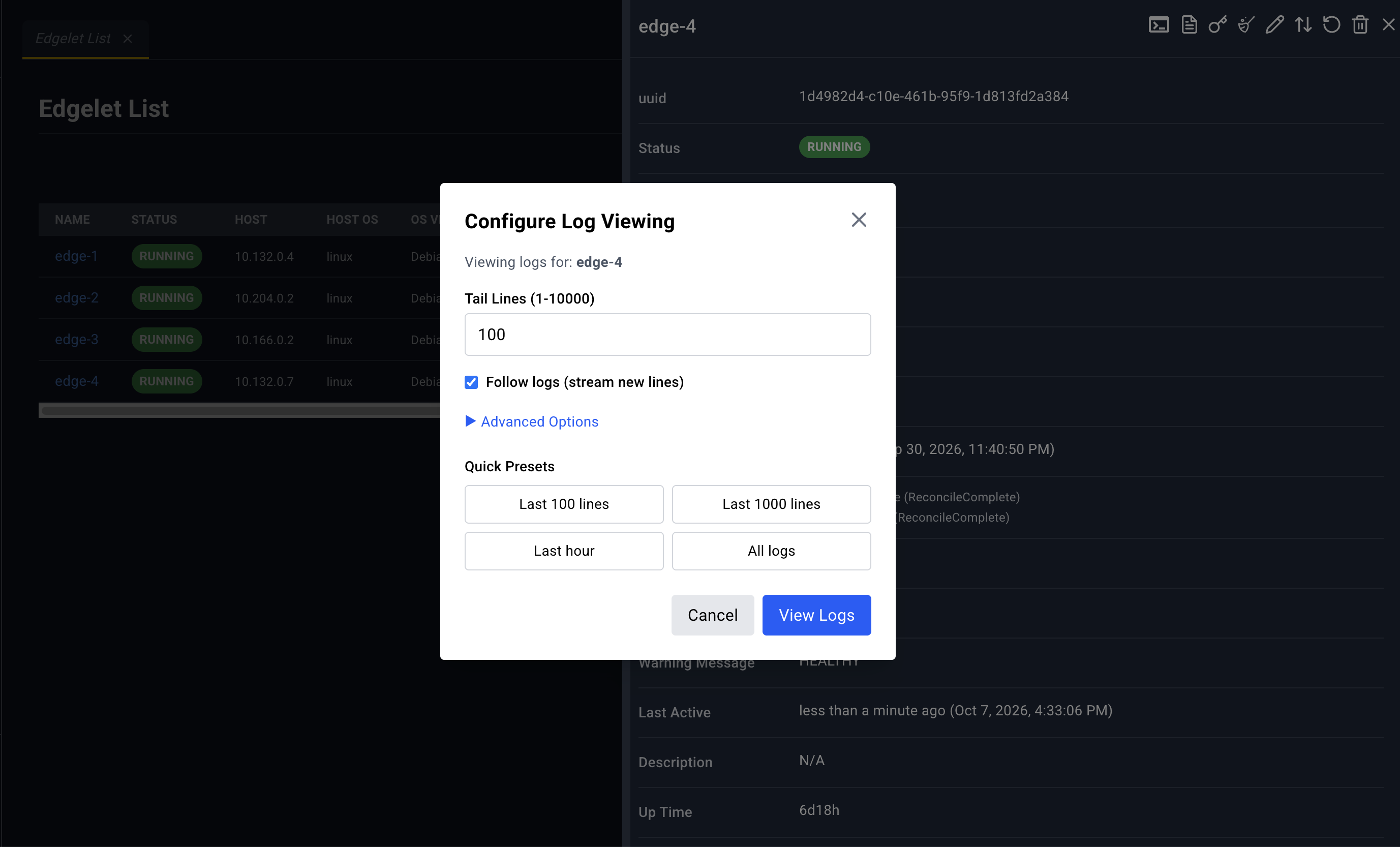

Configure Log Viewing

• Tail Lines (1-10000)
• Follow logs (stream new lines)
• Advanced Options: Since (optional), Until (optional)
• Presets: Last 100 lines, Last 1000 lines, Last hour, All logs
• View Logs opens the stream in the bottom drawer

Restart for the node uses the message This action will restart the agent node. Confirm with Restart.

Pruning Agent confirms removal of unused images and local AI models and knowledge on that node. Fleet-managed copies are not removed. Confirm with Prune.

Deleting Agent warns that the Edgelet node and the microservices and applications on it will be removed. A system or controller Edgelet node adds: Warning: This is a system or controller agent… Confirm with Delete.

Sync now does not use that confirm dialog. It re-applies platform configuration and then refreshes the panel.
