Access control

Access Control is always in the sidebar. It is role-based access for the Controller API, plus the NATS rules that applications and microservices reference.

Page	Address	Page heading	Deep link
Roles	/#/access-control/roles	Roles	roleName
Role Bindings	/#/access-control/rolebindings	Role Bindings	roleBindingName
Service Accounts	/#/access-control/serviceaccounts	Service Accounts	serviceAccountName
NATS Account Rules	/#/access-control/nats-account-rules	NATS Account Rules	ruleName
NATS User Rules	/#/access-control/nats-user-rules	NATS User Rules	ruleName

Every page has Search and the YAML dropzone. Click the name to open the detail panel. Roles, role bindings, and service accounts refresh the open panel. The two NATS rule panels show the row you clicked and do not poll.

Application NATS Config links to an account rule. Microservice NATS Config links to a user rule. Both use ruleName. Issued credentials are on Message bus.

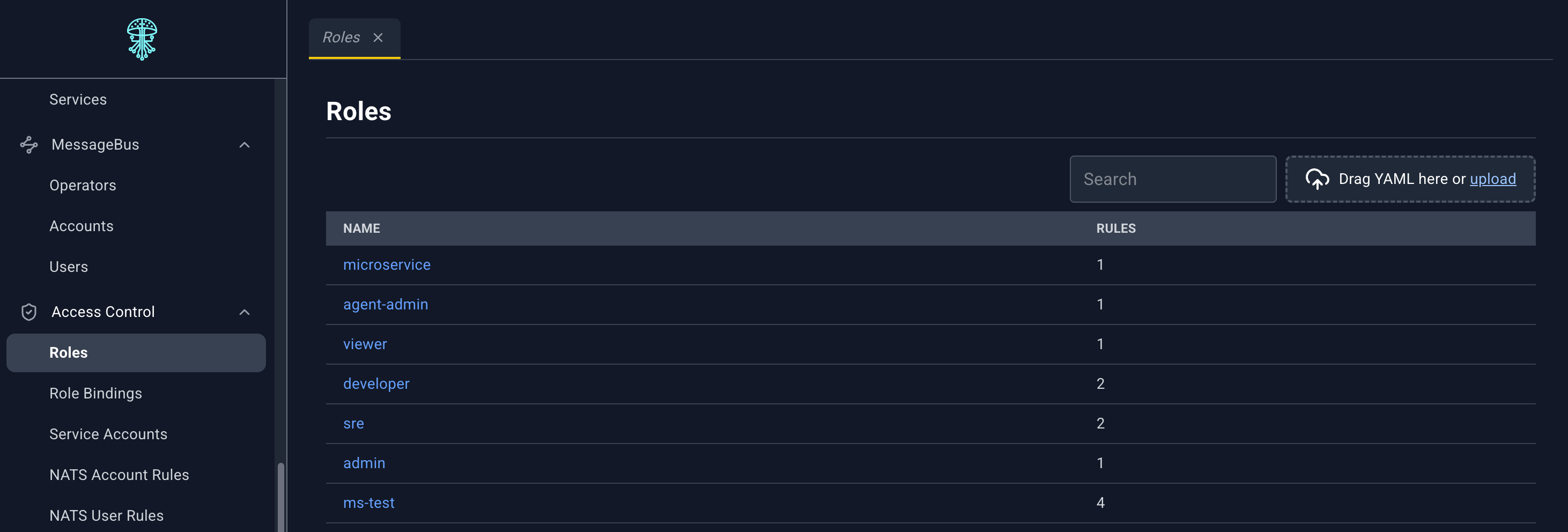

Roles

A role is a set of API rules: which resource types, and which verbs, a subject may use. How a role is declared: Roles.

Column	What it shows
Name	Role name. Click to open the detail panel.
Rules	How many rules the role contains

Loading overlay: Fetching Role Details.

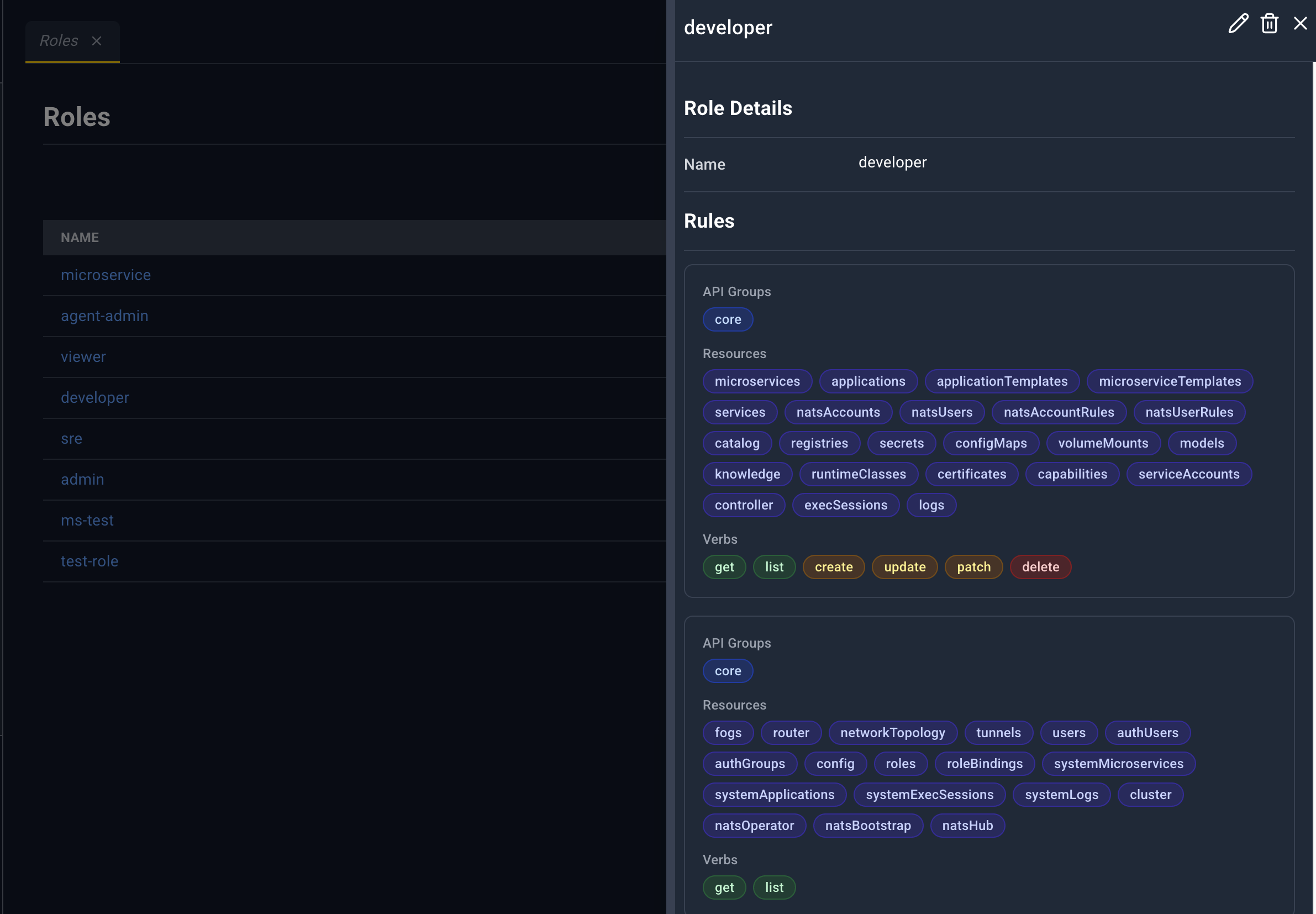

Role detail panel

Title is the role name, or Role Details.

Icon	Name	What happens
	Edit	Role YAML in the bottom drawer. Save updates the role.
	Delete	Deleting Role plus the name. The message warns about role bindings that still point at it.
	Close	Closes the panel.

Role Details: Name.

Rules: each rule shows API Groups, Resources, Verbs, and Resource Names. If the role has no rules, the section says No rules defined.

Role Bindings

A role binding grants a role to subjects (users, groups, or service accounts). How a binding is declared: Role bindings.

Column	What it shows
Name	Binding name. Click to open the detail panel.
Role	roleRef name
Subjects	How many subjects are bound

Loading overlay: Fetching RoleBinding Details.

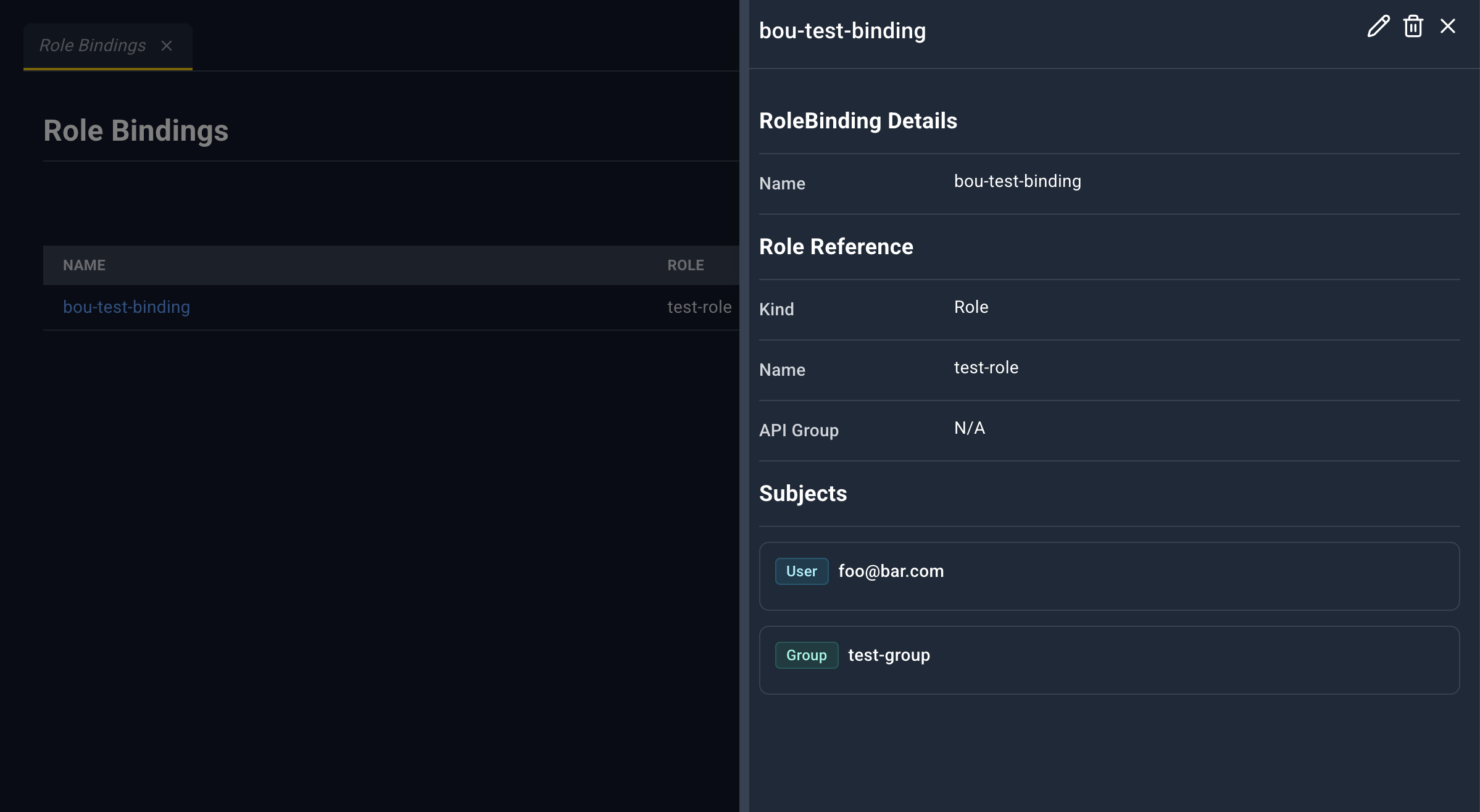

Role binding detail panel

Title is the binding name.

Icon	Name	What happens
	Edit	Role binding YAML.
	Delete	Deleting RoleBinding plus the name.
	Close	Closes the panel.

RoleBinding Details: Name.

Role Reference: Kind, Name, API Group.

Subjects: one badge per subject.

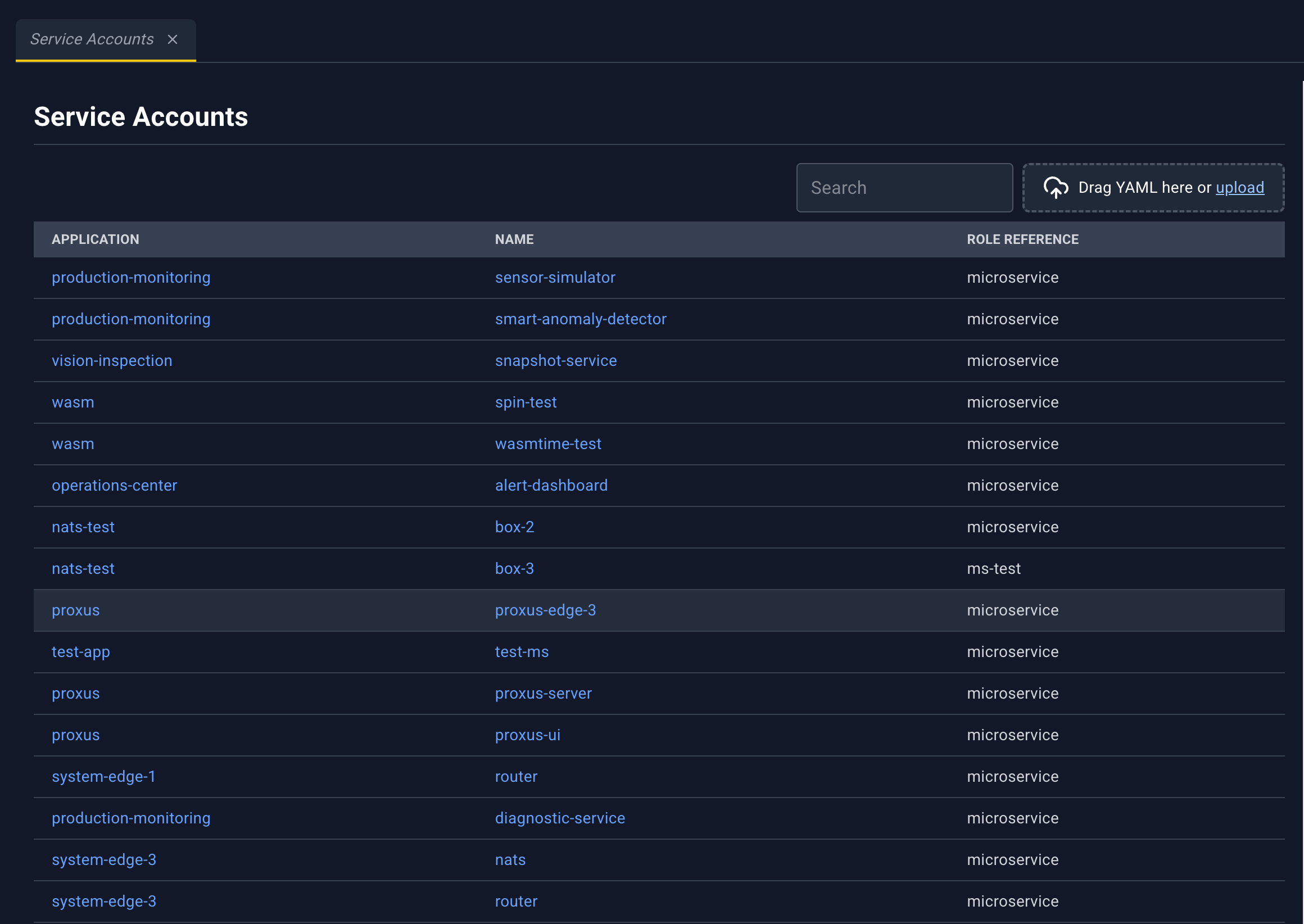

Service Accounts

A service account belongs to an application and points at a role. Microservices can mount that identity. The mount itself shows up on the microservice as a volume of type serviceAccount, which the console does not let you delete. How a service account is declared: Service accounts.

Column	What it shows
Application	Application name. Click to open the detail panel.
Name	Service account name. Click to open the same panel.
Role Reference	Role the account uses

The deep link needs the service account name. The list row supplies the application.

Loading overlay: Fetching ServiceAccount Details.

Service account detail panel

Title is the application, a slash, and the name, or ServiceAccount Details.

Icon	Name	What happens
	Edit	Service account YAML.
	Delete	Deleting ServiceAccount plus the name.
	Close	Closes the panel.

Fields: Application, Name, then Role Reference (kind, name, API group) or No role reference defined.

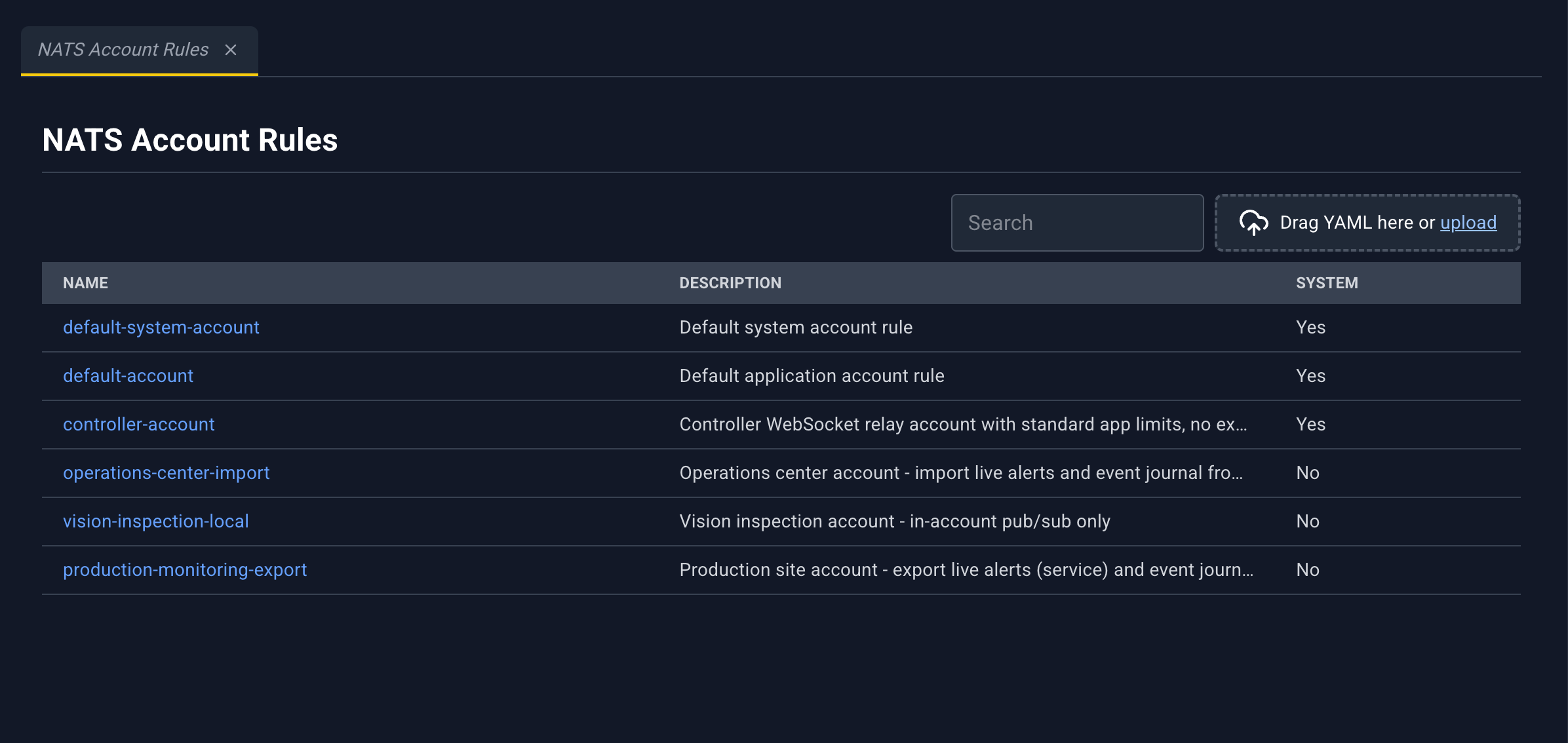

NATS Account Rules

An account rule is the policy applied when the platform ensures a NATS account for an application. Applications link to a rule by name from their NATS config. How a rule is declared: NATS account rules.

Column	What it shows
Name	Rule name. Click to open the detail panel.
Description	Description
System	Yes or No

Loading overlay on the list: Fetching NATS Account Rules. The panel uses the row you clicked. It does not fetch a second record and it does not poll.

Account rule detail panel

Icon	Name	What happens
	Edit	Rule YAML.
	Delete	Deleting NATS Account Rule plus the name. Hidden for the built-in rules below.
	Close	Closes the panel.

Fields: Name, System, Description, and Rule Spec (the rule JSON).

Delete is unavailable for:

• default-system-account-rule
• default-application-account-rule

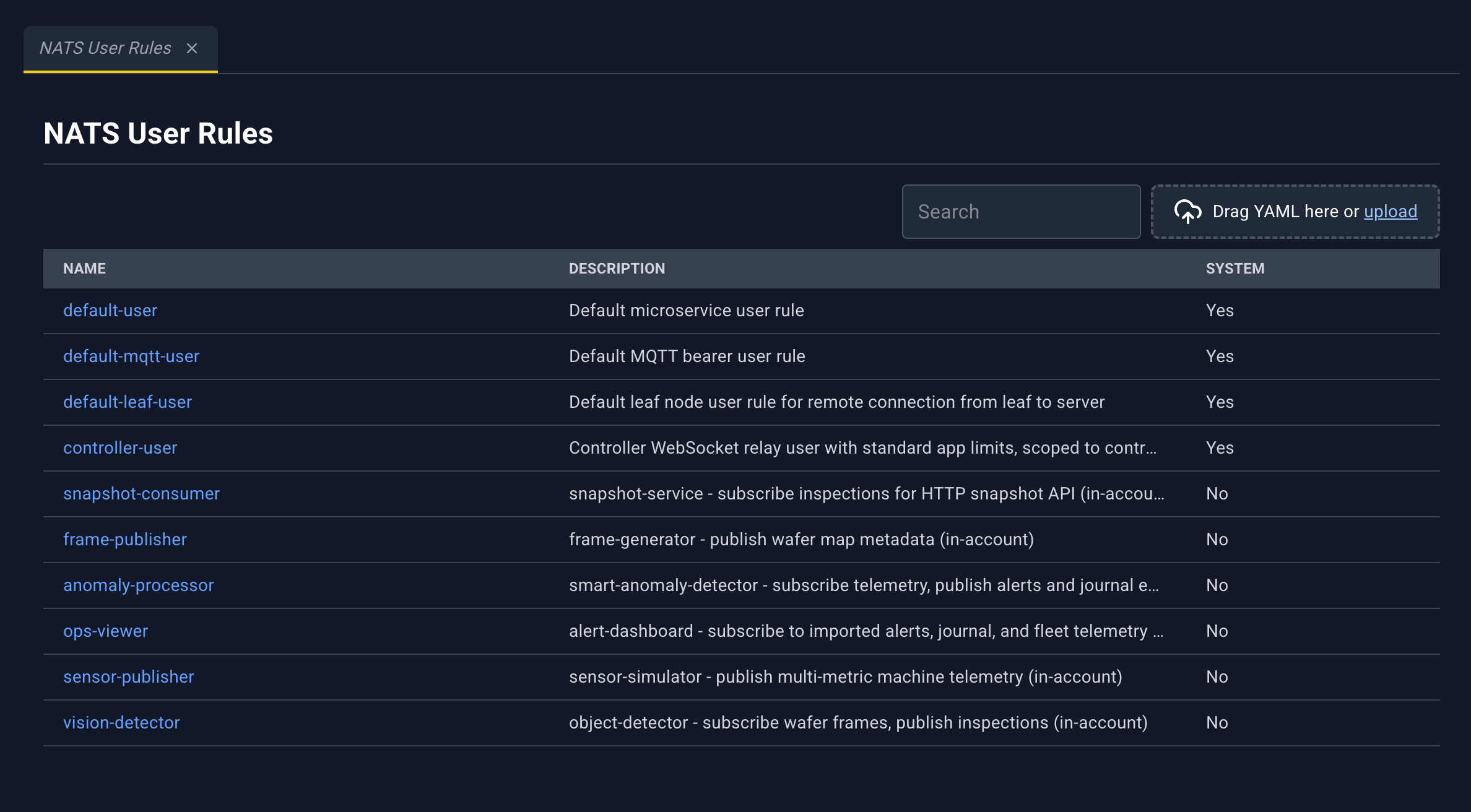

NATS User Rules

Same layout as account rules, for the policy applied to NATS users and MQTT bearers. Microservice NATS config links here. How a rule is declared: NATS user rules.

Column	What it shows
Name	Rule name. Click to open the detail panel.
Description	Description
System	Yes or No

User rule detail panel

Icons match account rules: Edit, Delete (hidden for built-in rules), Close.

Fields: Name, System, Description, Rule Spec.

Delete is unavailable for:

• default-microservice-user-rule
• default-mqtt-bearer-user-rule

And for the two default account-rule names if they appear in this list. The console treats that whole set as reserved.
