Configuration

These pages are the rest of the Config group: data the cluster stores, and the runtime classes Edgelet nodes can run. Every list has Search and the YAML dropzone. Click the name to open the detail panel. There is no Create button. Upload YAML to add a record.

Page	Sidebar title	Address	Page heading	Deep link
Config Maps	Config Maps	/#/config/ConfigMaps	Config Maps List	configMapName
Secrets	Secrets	/#/config/secret	Secrets	secretName
Certificates	Certificates	/#/config/certificates	Certificates	name
Volume Mounts	Volume Mounts	/#/config/VolumeMounts	Volume Mount List	volumeMountName
Runtime Classes	Runtime Classes	/#/config/RuntimeClasses	Runtime Classes	runtimeClassName

Volume mounts, models, knowledge, and runtime classes share the attach pattern. The detail panel lists Linked Fog Nodes, and Attach / Detach change that list.

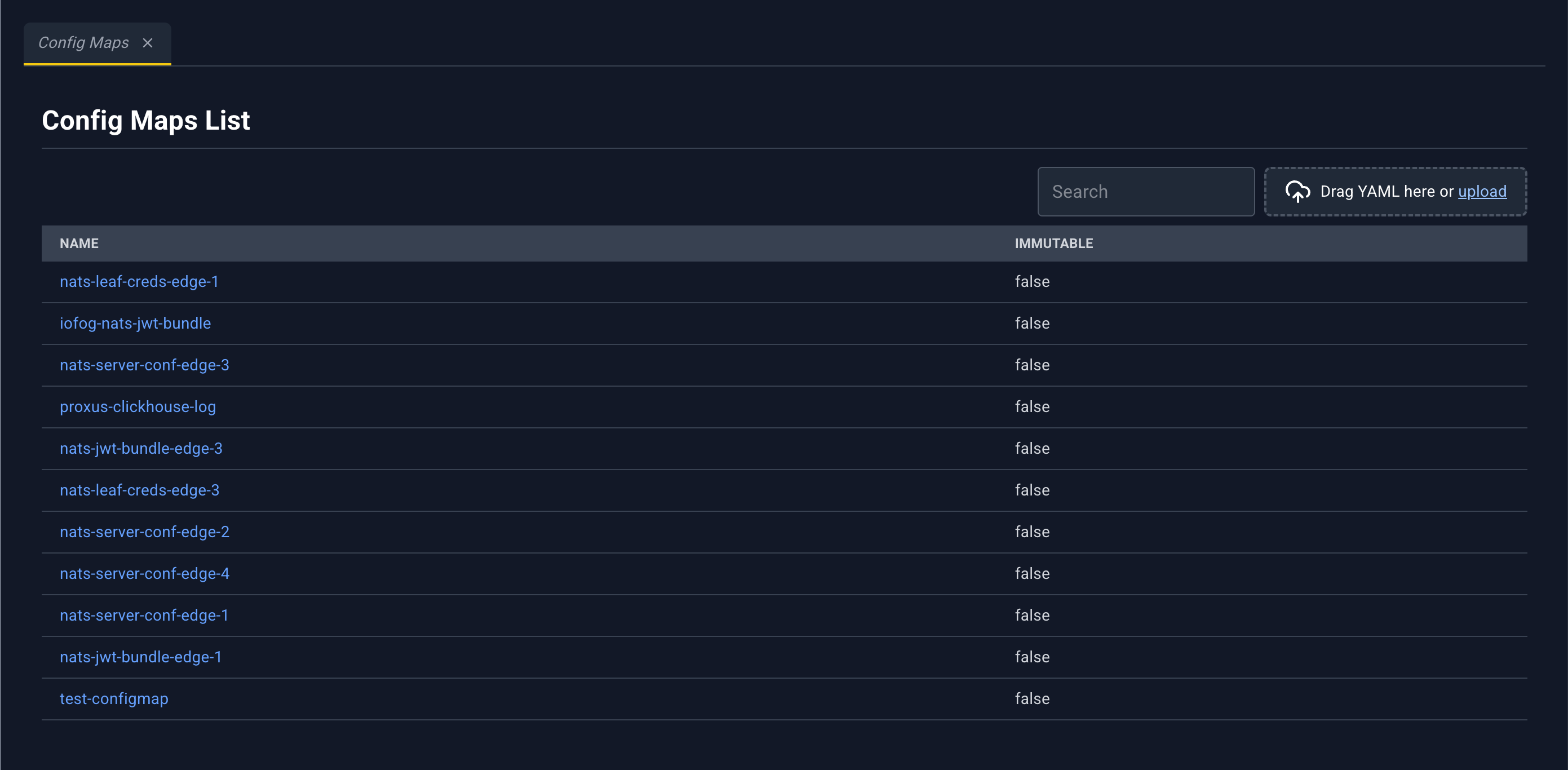

Config Maps

Named configuration documents. Volume mounts can project a config map onto an Edgelet node, and microservices can consume that mount. How a config map is declared: Config, secrets, and volumes.

Column	What it shows
Name	Config map name. Click to open the detail panel.
immutable	true or false

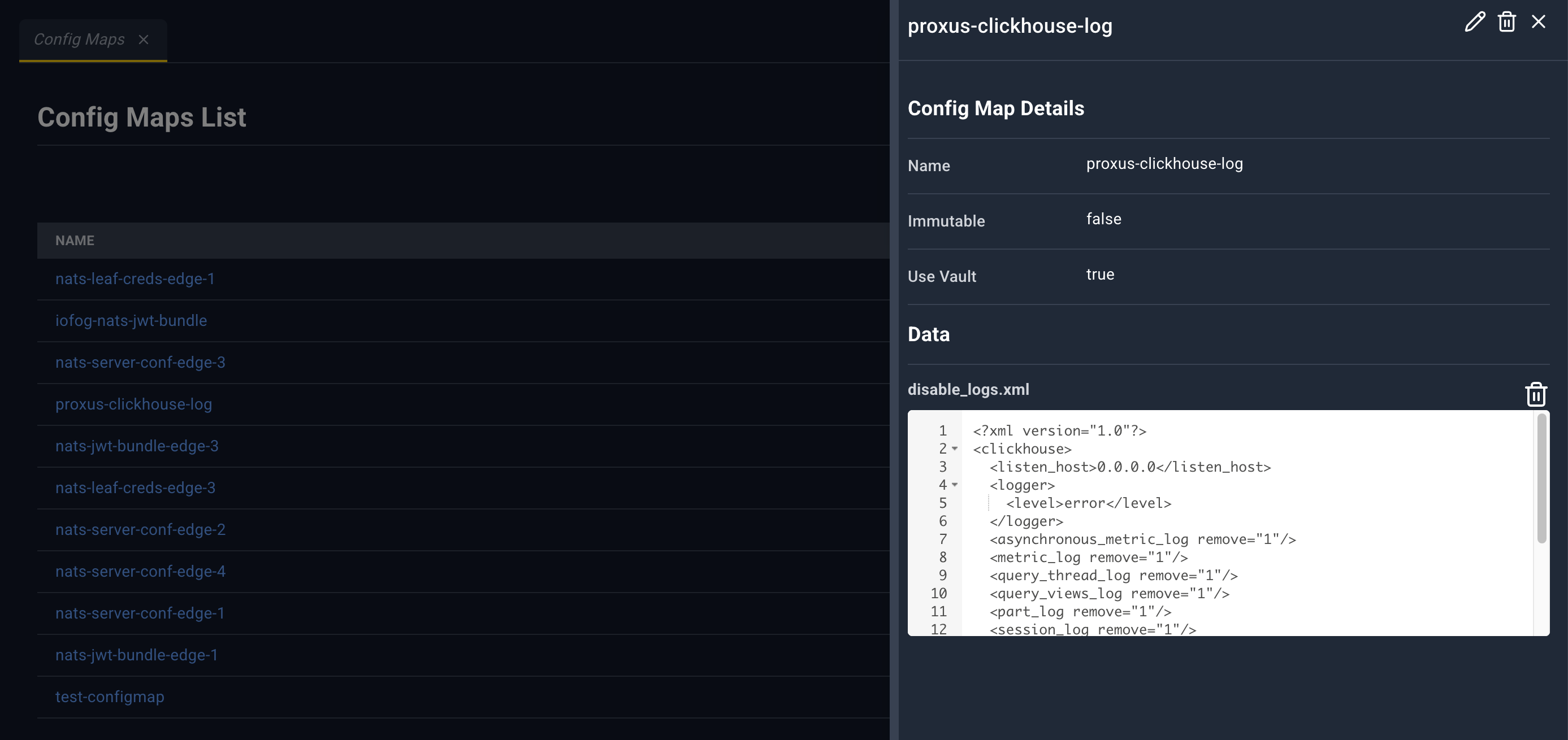

Config map detail panel

Icon	Name	What happens
	Edit	Full config map YAML in the bottom drawer. Save updates the config map.
	Delete	Deletes the config map. The confirm text warns about volume mounts and microservices that still reference it.
	Close	Closes the panel.

Config Map Details: Name, Immutable, Use Vault.

Data: one YAML editor per key. The key is the heading. After you edit a key, a pencil saves that key. deletes that key. This is separate from the header pencil, which edits the whole config map.

There are no outbound links in this panel. Volume mounts link here.

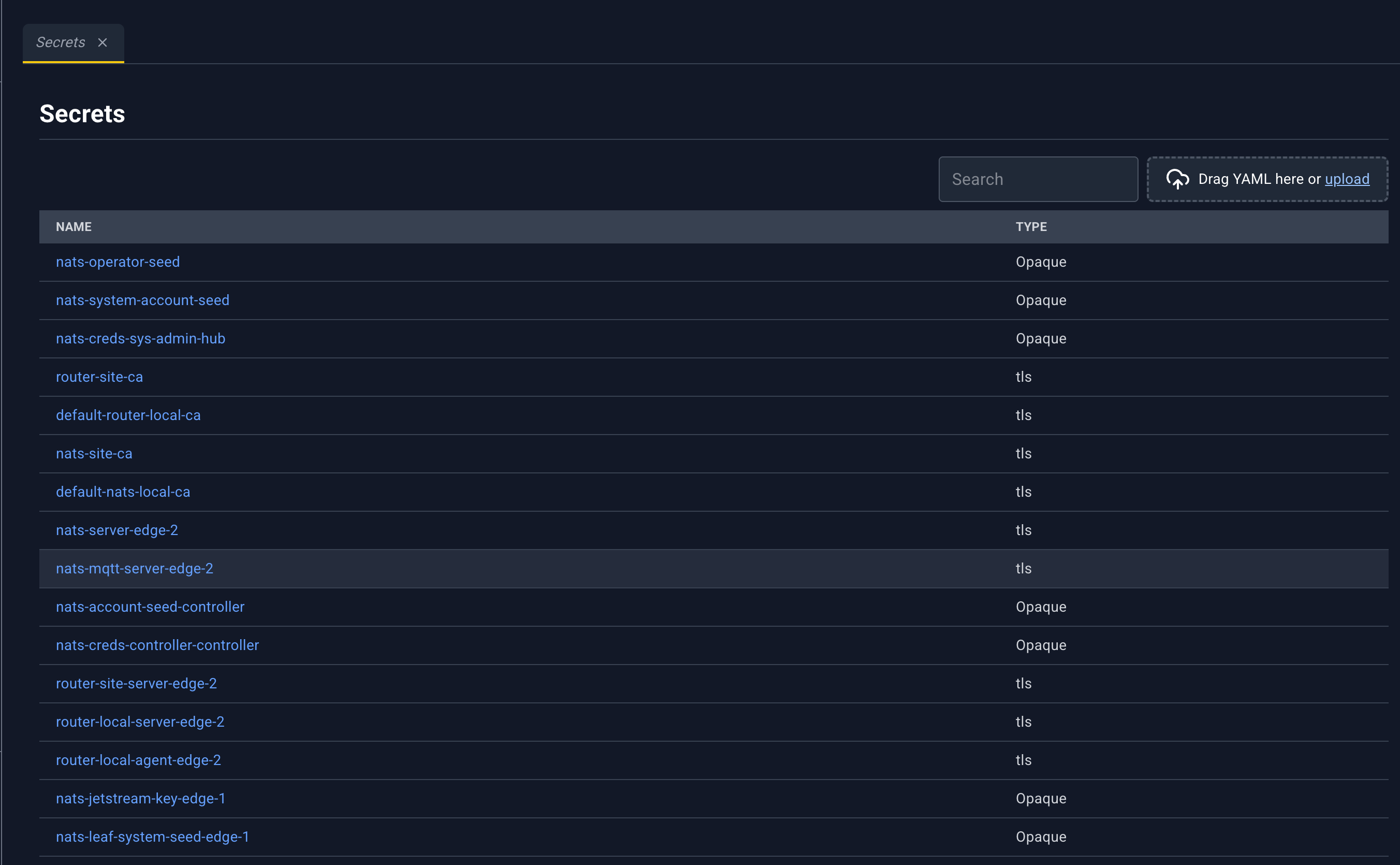

Secrets

Cluster secrets, including TLS material. Volume mounts and certificates can reference them. See Config, secrets, and volumes.

Column	What it shows
Name	Secret name. Click to open the detail panel.
type	Secret type

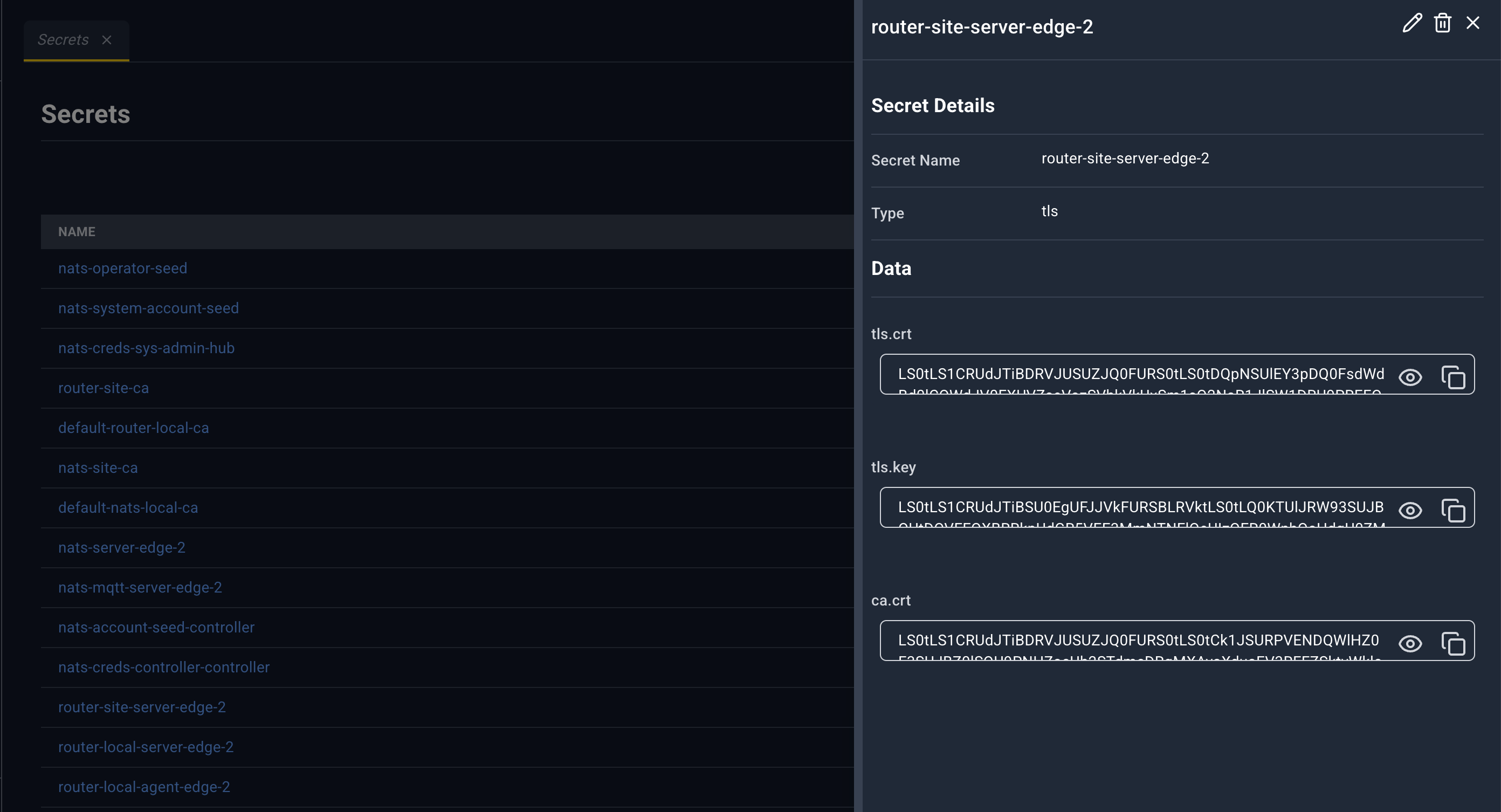

Secret detail panel

Icon	Name	What happens
	Edit	Secret YAML in the bottom drawer.
	Delete	Warns about volume mounts, certificates, and microservices that reference the secret.
	Close	Closes the panel.

Secret Details: Secret Name, Type.

Data: each key is a value box. TLS secrets stay masked (reveal and copy). Other types are shown as plain text with the same controls.

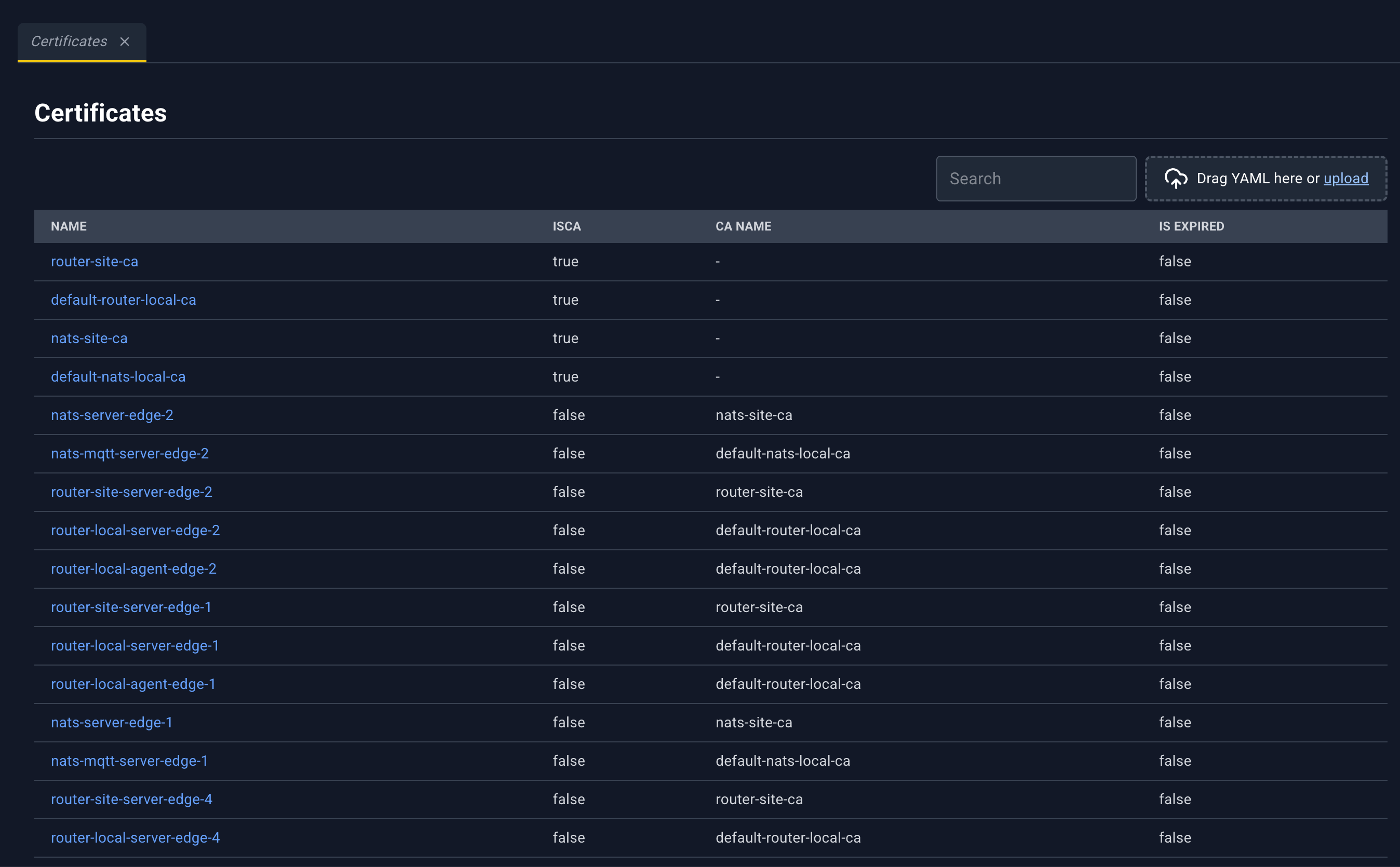

Certificates

Certificates and certificate authorities. How a certificate is declared: Certificates.

Column	What it shows
Name	Certificate name. Click to open the detail panel.
isCA	Whether this record is a CA
ca name	Issuing CA
Is Expired	Expiry flag

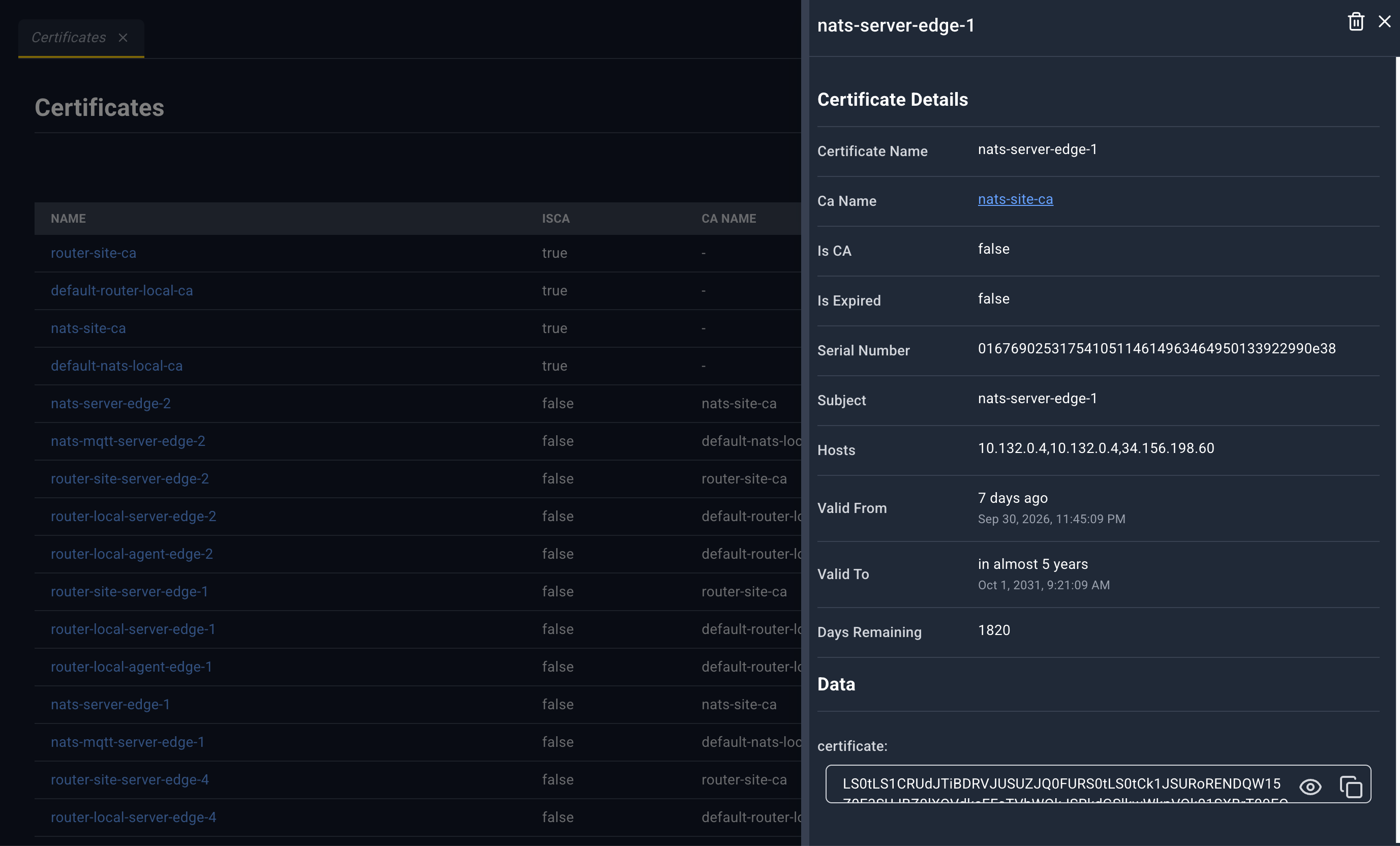

Certificate detail panel

Icon	Name	What happens
	Delete	Deletes a certificate or a CA through the matching action. The message mentions volume mounts and the TLS secret.
	Close	Closes the panel.

There is no Edit icon. Existing certificates are not updated in place. To replace one, delete it and upload the new document. The uploader says this explicitly if you try to patch one. See YAML uploader.

Certificate Details: Certificate Name, Ca Name (link to Certificates for that CA), Is CA, Is Expired, Serial Number, Subject, Hosts, Valid From, Valid To, Days Remaining.

Data: each material key, with reveal and copy.

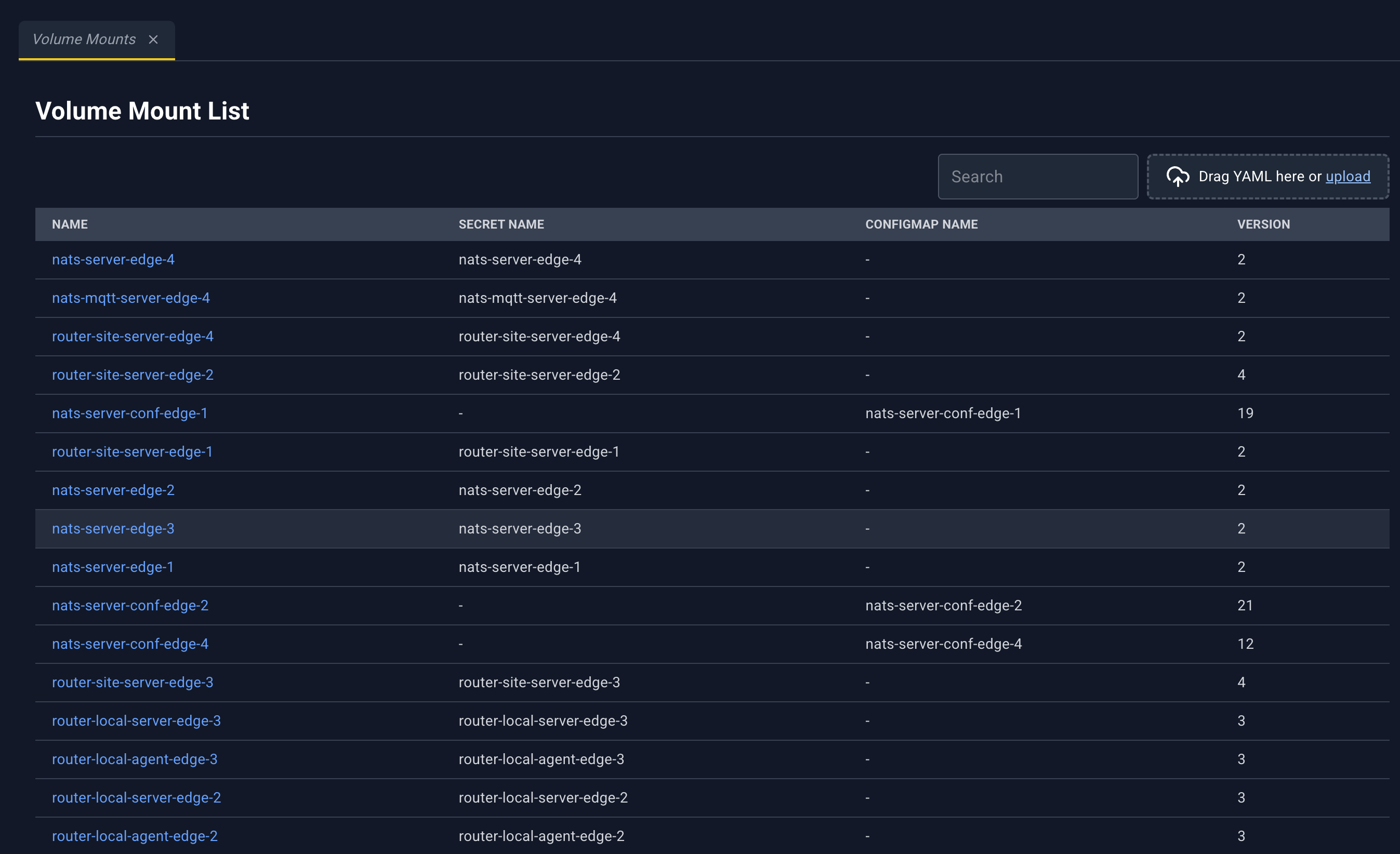

Volume Mounts

A volume mount binds a secret or a config map to Edgelet nodes so microservices on those nodes can mount it. See Config, secrets, and volumes.

Column	What it shows
Name	Volume mount name. Click to open the detail panel.
Secret Name	Secret, when this mount carries a secret
ConfigMap Name	Config map, when this mount carries a config map
version	Version

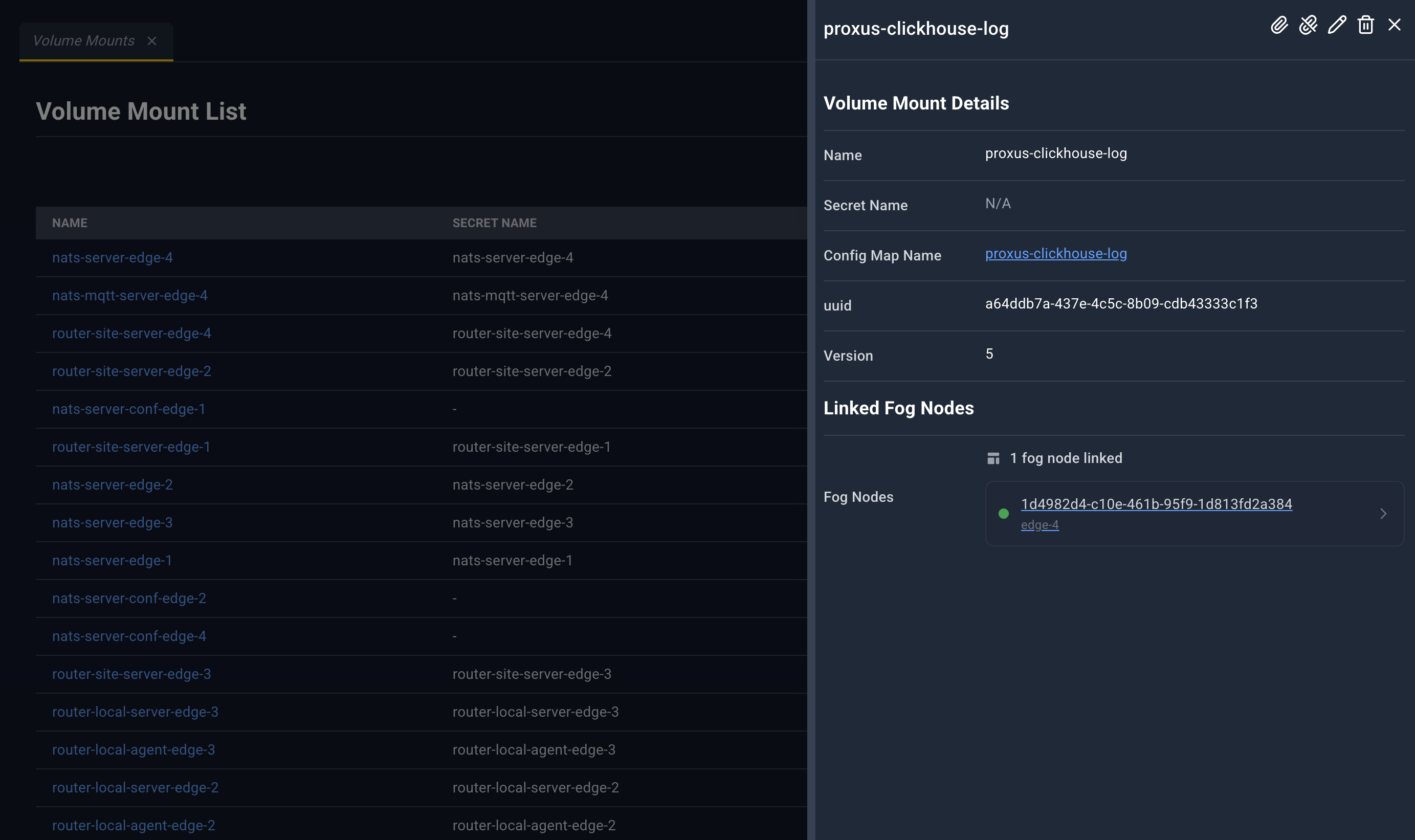

Volume mount detail panel

Icon	Name	What happens
	Attach	Attach plus the name. Pick Edgelet nodes. Toast Volume Mount Attached.
	Detach	Detach from the name. Toast Volume Mount Detached.
	Edit	Volume mount YAML.
	Delete	Deletes the volume mount.
	Close	Closes the panel.

Volume Mount Details: Name, Secret Name (link to Secrets), Config Map Name (link to Config Maps), uuid, Version.

Linked Fog Nodes lists each attached Edgelet node as a link to Edgelet List, or No fog nodes linked.

The Edgelet node detail panel links back to this volume mount by name.

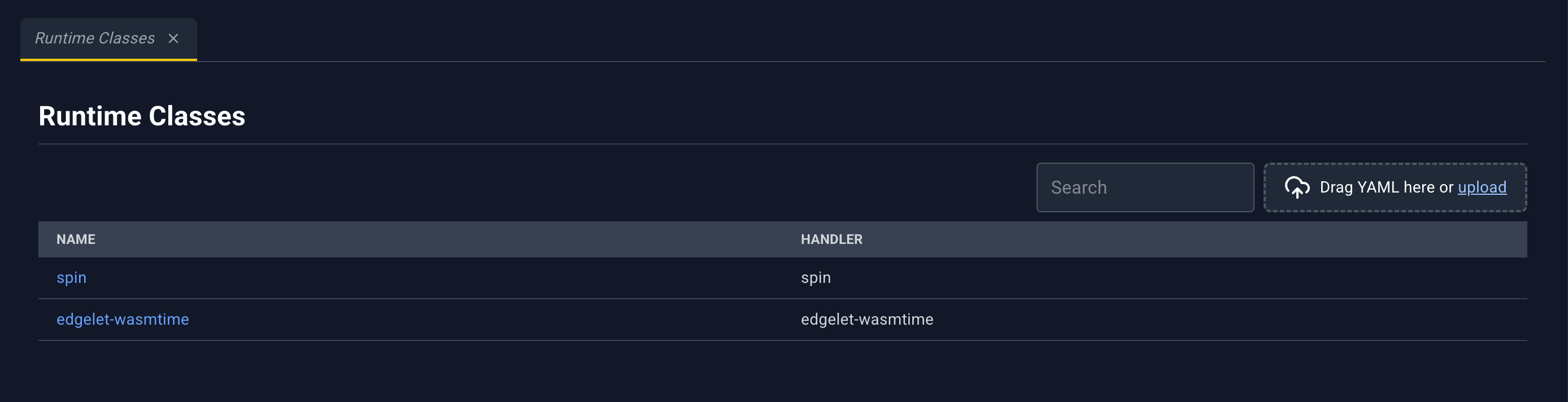

Runtime Classes

A runtime class names a handler an Edgelet node can use. Microservices pin a runtime by this name. Attach is limited to Edgelet nodes whose container engine is Edgelet. How a runtime class is declared: Runtime classes.

Column	What it shows
Name	Runtime class name. Click to open the detail panel.
Handler	Handler

Runtime class detail panel

Icon	Name	What happens

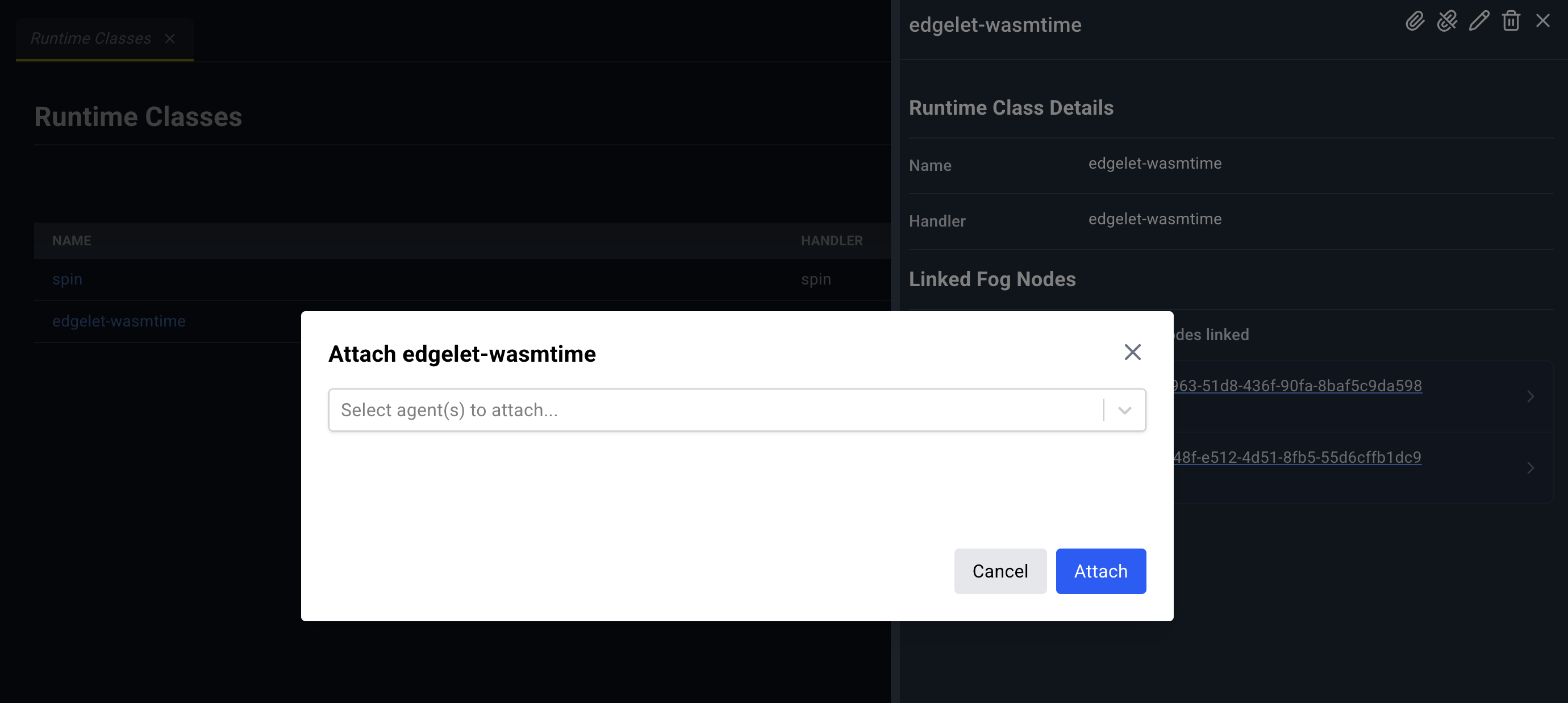

	Attach	Attach plus the name. Toast Runtime Class Attached.
	Detach	Detach from the name. Toast Runtime Class Detached.
	Edit	Runtime class YAML.
	Delete	Warns when microservices still pin this runtime.
	Close	Closes the panel.

Runtime Class Details: Name, Handler.

Linked Fog Nodes links each node to Edgelet List.

In the attach list, an Edgelet node whose engine is not Edgelet is disabled and labeled with the node name, the engine, and Runtime Classes attach to Edgelet only.

The microservice Runtime field and the Edgelet node Applied Runtime Classes table both link back here.
